Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
Ringspann Three Part Shrink Discs RLK 603 K 175
The three-part RLK 603 K series shrink disc from Ringspann is designed with high torque capacity and corrosion-resistant features. Adjustable in the direction of rotation, the Shrink Disc RLK 603 K ensures a backlash-free connection of a stirring hook, used in a bakery product screening system, to the gear drive. Using a stainless steel material permits regular cleaning of the complete unit with cleaning fluids. You can download the product's 3D model below
MPN: 4200-175310-000000
Specifications

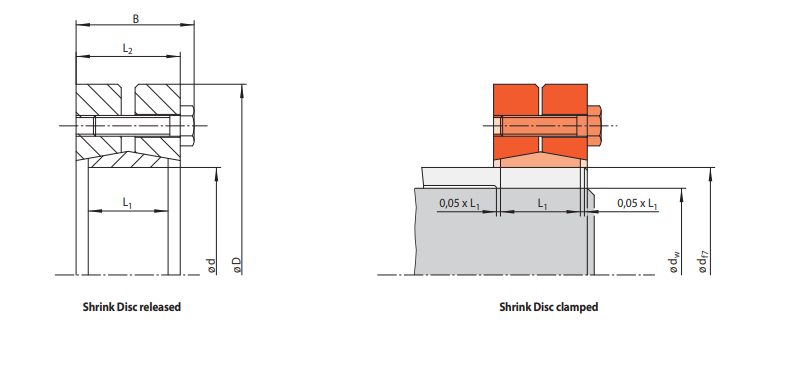

| d mm | 300 |
| b mm | 78 |
| l1 mm | 56 |
| l2 mm | 68 |
| clamping screws tightening torque ms nm | 135 |
| clamping screws number | 8 |
| clamping screws size | M 16 |
| clamping screws length mm | 55 |
| weight kg | 21 |
| type | RLK 603 K-175 |
