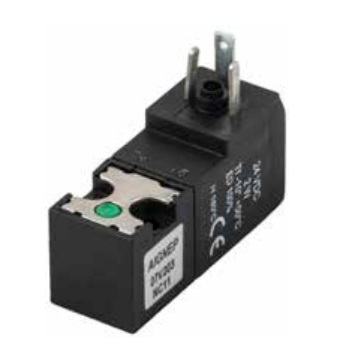

Aignep 07V 15 mm Miniature Solenoid Valves

The Aignep 07V 15 mm Miniature Solenoid Valves operate at a pressure range of 0 to 7 bar (101.5 psi) for NO and 0 to 10 bar (145 psi) for NC. They can handle temperatures from -5°C to 50°C (23°F to 122°F) with a flow rate of 30 NI/min at 6 bar. The orifice size is 1.1 mm, and the valve has a life expectancy of 50 million cycles. It supports voltages from 12V DC to 24V DC with a power requirement of 2.3W and a voltage tolerance of -5% to +10%. The response time when energized is 10-12 ms, and it has an IP50 protection rating with a class F protection for temperatures up to 155°C (311°F).

Aignep 07V Series Valves Catalog
