Aignep FRL Air Treatment Unit

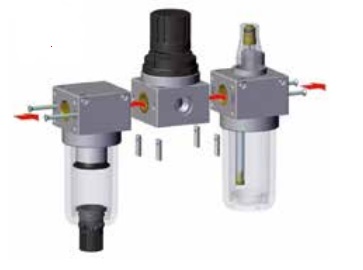

The Aignep FRL Air Treatment Unit is designed with a durable technopolymeric body, bowl, filter ring, and condensate exhaust, along with brass threaded inserts and a PE filtering cartridge. It handles compressed air with threaded connections of 1/8" and 1/4" NPTF. Filtration options include 5 µm, 20 µm (standard), and 50 µm, with a flow rate of 800 NI/min at 6 bar. The unit operates at pressures up to 15 bar (217 psi) and temperatures from -10°C (14°F) to 50°C (122°F). The bowl has a capacity of 17.5 cm³, and the condensation exhaust is manual or semi-automatic. Proper assembly requires the filter, regulator, and lubricator to be connected in sequence, ensuring air flows in the direction of the arrows on the components.
Aignep FRL Air Treatment Unit Catalog
HVH Industrial Solutions is a distributor of Aignep.
We work closely with the Aignep team to provide superior customer service and engineering support.
If you have any questions write us via live chat, (one of our team members will answer your questions), call us, or send us a quote request. The HVH team is always ready to help you.
