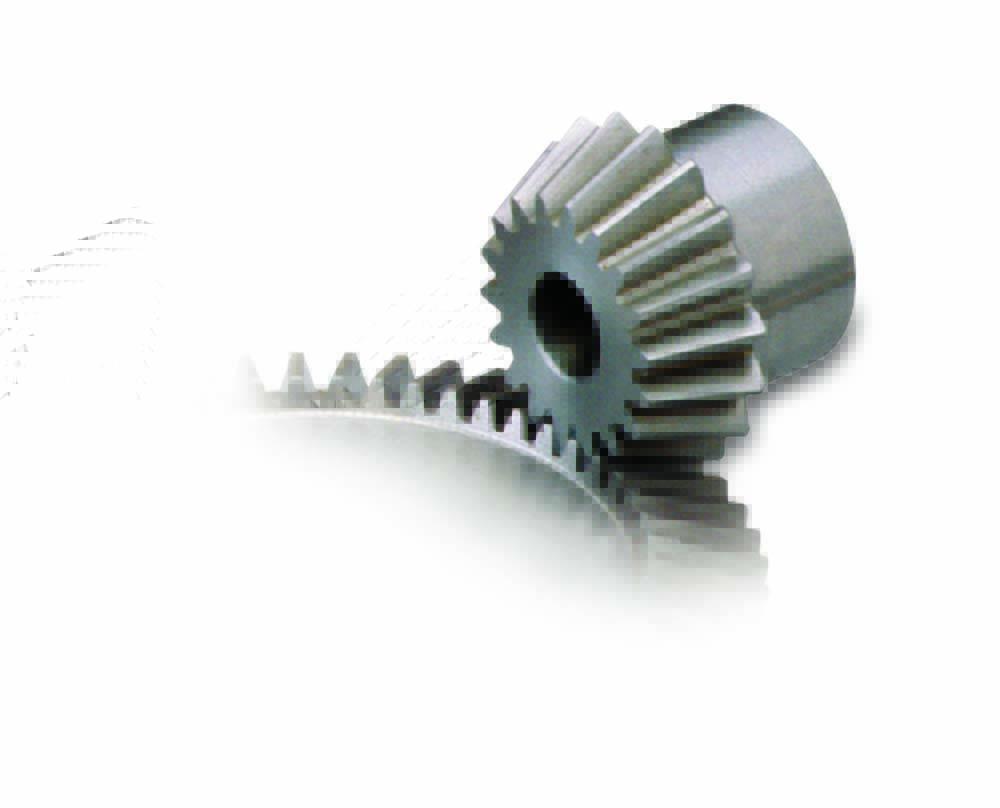

Bevel Gears

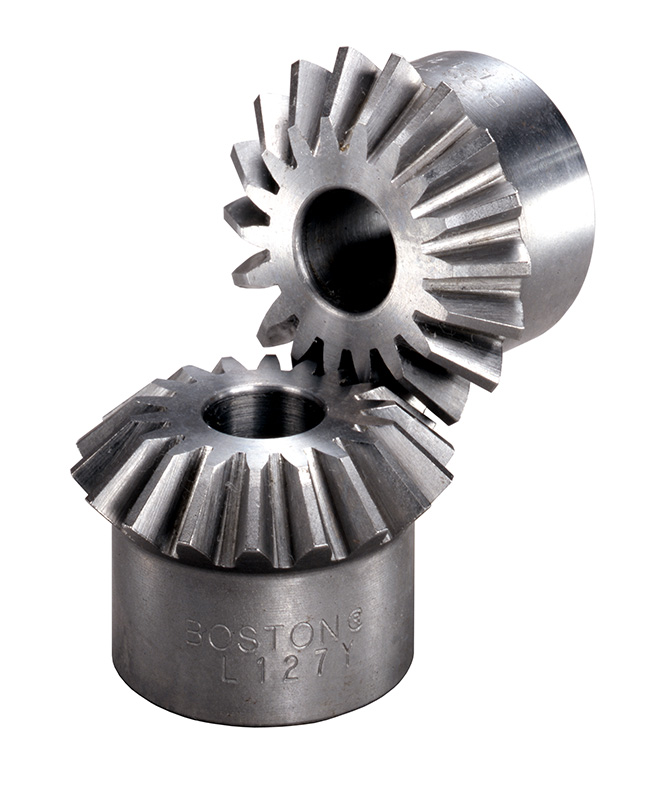

A bevel gear transmits power between shafts with axes that intersect at 90 degrees, but also it can be used on shafts oriented at other angles. Bevel gears produce a thrust load on both shafts and have teeth cut out on an angular or conical surface. Bevel and Miter gears have the same characteristics, except miter have a 1:1 ratio and bevel have ratios from 1.5:1 to 6:1. Bevel gears are generally more expensive and cannot transmit as much torque per size as other gears. Bevel gears are primarily used in medium to large conveyors, water treatment, crushers, and mixers.
We work closely with the leading manufacturers to provide gearing solutions to meet the requirements of your unique applications.
If you have any questions, write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
or
Requesting ... File size should not exceed 20 MB.
Bevel Gears
A bevel gear transmits power between shafts with axes that intersect at 90 degrees, but also it can be used on shafts oriented at other angles. Bevel gears produce a thrust load on both shafts and have teeth cut out on an angular or conical surface. Bevel and Miter gears have the same characteristics, except miter have a 1:1 ratio and bevel have ratios from 1.5:1 to 6:1. Bevel gears are generally more expensive and cannot transmit as much torque per size as other gears. Bevel gears are primarily used in medium to large conveyors, water treatment, crushers, and mixers.
We work closely with the leading manufacturers to provide gearing solutions to meet the requirements of your unique applications.
If you have any questions, write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
|
MPN
|
pitch diameter
|
diametral pitch
|
number of teeth
|
Brand
|
Price
|
Actions
|
|---|---|---|---|---|---|---|
| HL147Y-P | 0.5 in | 20 | 10 | Boston Gear | Request a quote | |
|
HL147Y-P RFQ
|
||||||
| PA6612Y-P | 1.00 in | 12 | 12 | Boston Gear | Request a quote | |
|
PA6612Y-P RFQ
|
||||||
| HL148Y-P | 0.75 in | 16 | 12 | Boston Gear | Request a quote | |
|
HL148Y-P RFQ
|
||||||

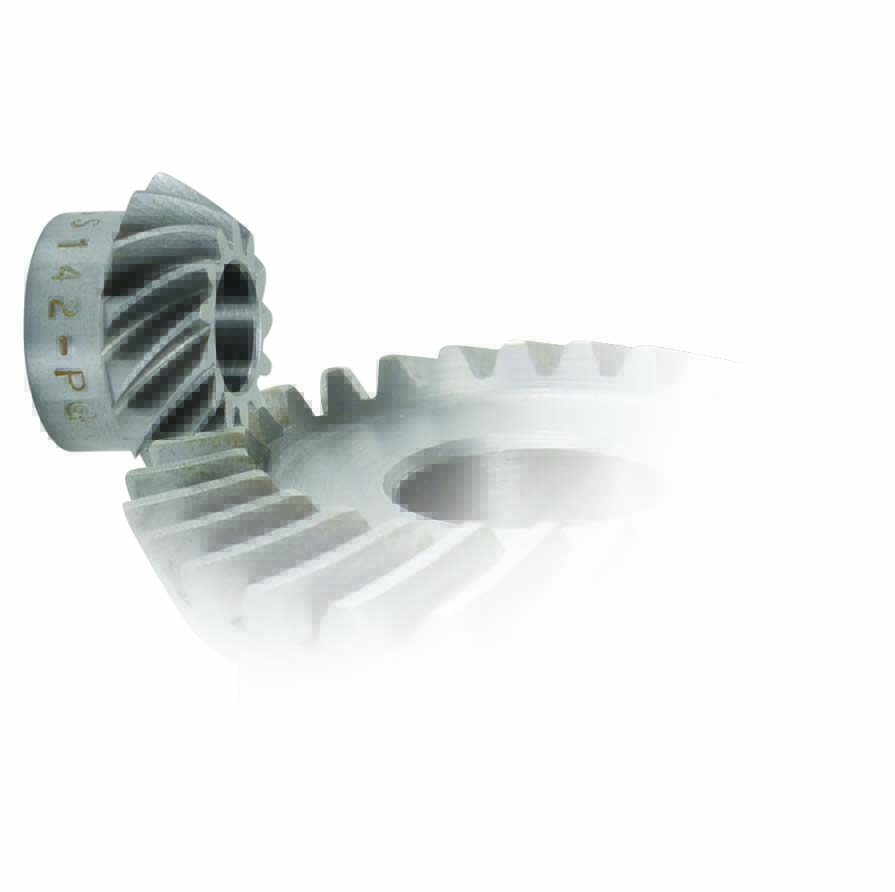

| SS142-P | 0.93 in | 14 | 13 | Boston Gear | Request a quote | |
|
SS142-P RFQ
|
||||||
| SS192-P | 0.68 in | 19 | 13 | Boston Gear | Request a quote | |
|
SS192-P RFQ
|
||||||
| SS302-P | 0.43 in | 30 | 13 | Boston Gear | Request a quote | |
|
SS302-P RFQ
|
||||||
| L100Y | 1.00 in | 14 | 14 | Boston Gear | Request a quote | |
|
L100Y RFQ
|
||||||
| L124Y | 1.00 in | 14 | 14 | Boston Gear | Request a quote | |
|
L124Y RFQ
|
||||||
| HL150Y-P | 1.00 in | 14 | 14 | Boston Gear | Request a quote | |
|
HL150Y-P RFQ
|
||||||
| L101Y | 1.25 in | 12 | 15 | Boston Gear | Request a quote | |
|
L101Y RFQ
|
||||||
| L125Y | 1.25 in | 12 | 15 | Boston Gear | Request a quote | |
|
L125Y RFQ
|
||||||
| PA625Y-P | 3.00 in | 5 | 15 | Boston Gear | Request a quote | |
|
PA625Y-P RFQ
|
||||||
| PA6410Y-P | 1.50 in | 10 | 15 | Boston Gear | Request a quote | |
|
PA6410Y-P RFQ
|
||||||
| PA7536Y-P | 2.50 in | 6 | 15 | Boston Gear | Request a quote | |
|
PA7536Y-P RFQ
|
||||||
| PA935Y-P | 3.00 in | 5 | 15 | Boston Gear | Request a quote | |
|
PA935Y-P RFQ
|
||||||
| PA9610Y-P | 1.50 in | 10 | 15 | Boston Gear | Request a quote | |
|
PA9610Y-P RFQ
|
||||||
| HLK101Y | 1.25 in | 12 | 15 | Boston Gear | Request a quote | |
|
HLK101Y RFQ
|
||||||
| HLSK101Y-L | 1.25 in | 12 | 15 | Boston Gear | Request a quote | |
|
HLSK101Y-L RFQ
12 DP, 20 PA, 35 Spiral Angle, 1:1 R, 15 Teeth, Spiral Miter Gear
Brand:
Boston Gear
MPN:
HLSK101Y-L
|
||||||
| HLSK101Y-R | 1.25 in | 12 | 15 | Boston Gear | Request a quote | |
|
HLSK101Y-R RFQ
12 DP, 20 PA, 35 Spiral Angle, 1:1 R, 15 Teeth, Spiral Miter Gear
Brand:
Boston Gear
MPN:
HLSK101Y-R
|
||||||
| L110Y | 1.00 in | 16 | 16 | Boston Gear | Request a quote | |
|
L110Y RFQ
|
||||||
| PA3316Y-P | 1.00 in | 16 | 16 | Boston Gear | Request a quote | |
|
PA3316Y-P RFQ
|
||||||
| PA4416Y-P | 1.00 in | 16 | 16 | Boston Gear | Request a quote | |
|
PA4416Y-P RFQ
|
||||||
| PA638Y-P | 2.00 in | 8 | 16 | Boston Gear | Request a quote | |
|
PA638Y-P RFQ
|
||||||
| PA6616Y-P | 1.00 in | 16 | 16 | Boston Gear | Request a quote | |
|
PA6616Y-P RFQ
|
||||||
| PA824Y-P | 4.00 in | 4 | 16 | Boston Gear | Request a quote | |
|
PA824Y-P RFQ
|
||||||
| PA848Y-P | 2.00 in | 8 | 16 | Boston Gear | Request a quote | |
|
PA848Y-P RFQ
|
||||||
| SS142-1P | 1.14 in | 14 | 16 | Boston Gear | Request a quote | |
|
SS142-1P RFQ
|
||||||
| HL146Y-P | 1.00 in | 16 | 16 | Boston Gear | Request a quote | |
|
HL146Y-P RFQ
|
||||||
| HL149Y-P | 1.00 in | 16 | 16 | Boston Gear | Request a quote | |
|
HL149Y-P RFQ
|
||||||
| HLK110Y | 1.00 in | 16 | 16 | Boston Gear | Request a quote | |
|
HLK110Y RFQ
|
||||||
| SS102-P | 1.70 in | 10 | 17 | Boston Gear | Request a quote | |
|
SS102-P RFQ
|
||||||
| SS82-P | 2.13 in | 8 | 17 | Boston Gear | Request a quote | |
|
SS82-P RFQ
|
||||||
| L102Y | 1.50 in | 12 | 18 | Boston Gear | Request a quote | |
|
L102Y RFQ
|
||||||

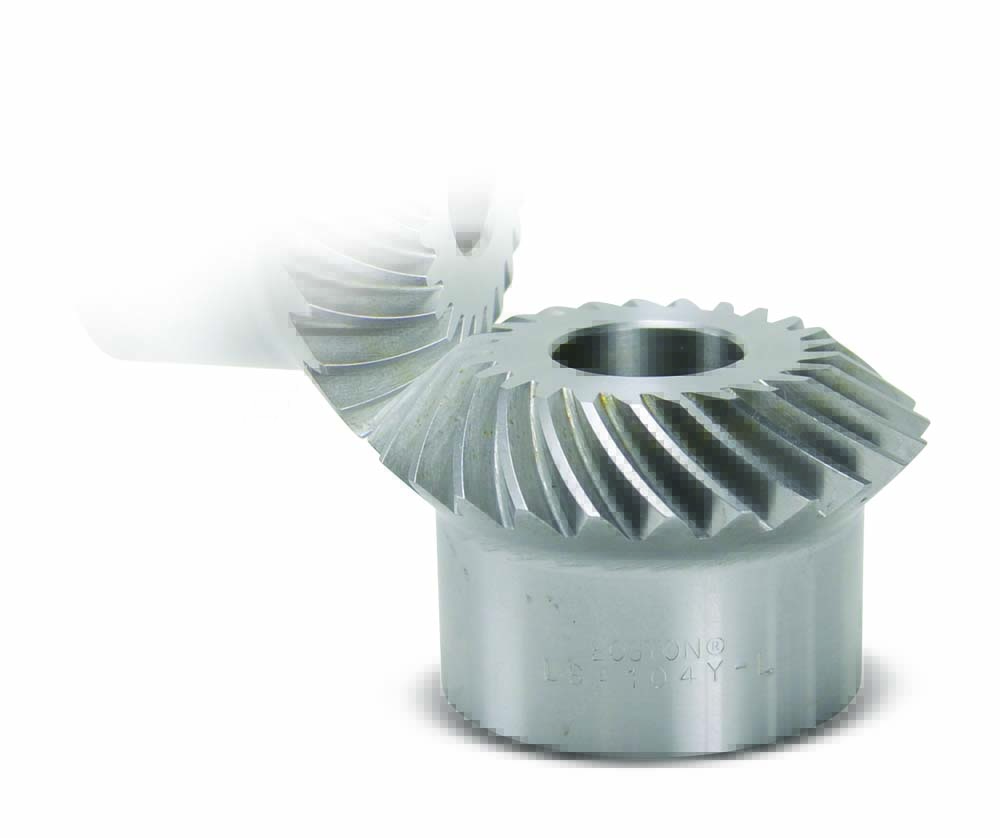

| LSA110Y-L | 1.00 in | 18 | 18 | Boston Gear | Request a quote | |
|
LSA110Y-L RFQ
|
||||||

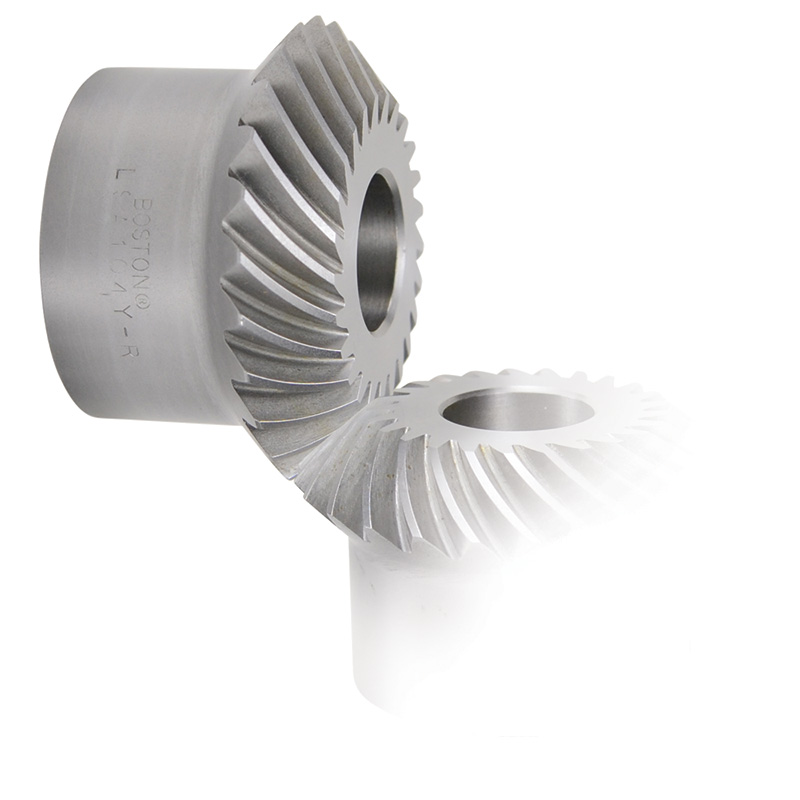

| LSA110Y-R | 1.00 in | 18 | 18 | Boston Gear | Request a quote | |
|
LSA110Y-R RFQ
|
||||||
| PA3212Y-P | 1.5 in | 12 | 18 | Boston Gear | Request a quote | |
|
PA3212Y-P RFQ
|
||||||
| PA45312Y-P | 1.50 in | 12 | 18 | Boston Gear | Request a quote | |
|
PA45312Y-P RFQ
|
||||||
| PA626Y-P | 3.00 in | 6 | 18 | Boston Gear | Request a quote | |
|
PA626Y-P RFQ
|
||||||
| PA6412Y-P | 1.50 in | 12 | 18 | Boston Gear | Request a quote | |
|
PA6412Y-P RFQ
|
||||||
| PA948Y-P | 2.25 in | 8 | 18 | Boston Gear | Request a quote | |
|
PA948Y-P RFQ
|
||||||
| HL151Y-P | 1.50 in | 12 | 18 | Boston Gear | Request a quote | |
|
HL151Y-P RFQ
|
||||||
| HL152Y-P | 1.50 in | 12 | 18 | Boston Gear | Request a quote | |
|
HL152Y-P RFQ
|
||||||
| HL158Y-P | 3.00 in | 6 | 18 | Boston Gear | Request a quote | |
|
HL158Y-P RFQ
|
||||||
| HLK102Y | 1.50 in | 12 | 18 | Boston Gear | Request a quote | |
|
HLK102Y RFQ
|
||||||
| HLSK102Y-L | 1.50 in | 12 | 18 | Boston Gear | Request a quote | |
|
HLSK102Y-L RFQ
|
||||||
| HLSK102Y-R | 1.50 in | 12 | 18 | Boston Gear | Request a quote | |
|
HLSK102Y-R RFQ
|
||||||
| L103Y | 2.00 in | 10 | 20 | Boston Gear | Request a quote | |
|
L103Y RFQ
|
||||||
| L111Y | 1.25 in | 16 | 20 | Boston Gear | Request a quote | |
|
L111Y RFQ
|
||||||
| PA528Y-P | 2.50 in | 8 | 20 | Boston Gear | Request a quote | |
|
PA528Y-P RFQ
|
||||||
| PA6310Y-P | 2.00 in | 10 | 20 | Boston Gear | Request a quote | |
|
PA6310Y-P RFQ
|
||||||
