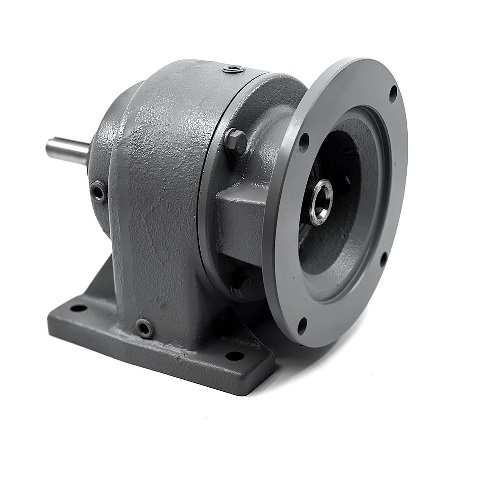

IPTS Size AA Helical Gear Speed Reducers

The Size AA Helical Gear Speed Reducer from IPTS, Inc. is engineered with a quill (plug-in) input, accommodating any AC or DC motor in a 56C frame directly without the need for a flexible shaft coupling, thus saving both space and installation time. This highly efficient reducer boasts a 95% efficiency rating, achieved through the use of hardened steel gears supported by oversized ball bearings within a close-grained cast iron housing. Available in both foot and output flange mounting versions, it ensures versatility in installation.

FEATURES

• Ratios from 1.7 to 40:1

• Foot Mounted HQD-AA-56C or Flange Mounted HQVD-AA-56C

• Available with horizontal or vertical mounting

• Shaft Sizes: 5/8″ or 3/4″

• For use with AC or DC C-Face Motors in NEMA Frames 56C

• Hardened and Shaved Steel Gears for 96% efficiency

• Double Lip, Spring loaded oil seals guard against oil leakage while preventing dirt from entering the reducer

• Close grained cast iron construction

• Stepped output shaft with oversized ball bearings

• Weight: 22 pounds
