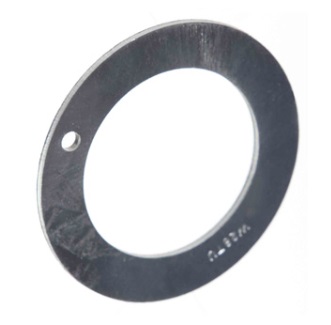

Isostatic TP Lead-Free Steel-Backed PTFE Lined Thrust Washers

• Self-lubricating dry sliding bearing

• A steel-backed composite material comprised of:

  • Low carbon steel backing for extremely high load capacity - .50 – 2.7 mm thick

  • Sintered bronze offers optimal heat dispersion – .20 - .35 mm thickness and

  • PTFE – lead free sliding surface creates a low friction coefficient and allows for a wide temperature range – thickness .2 mm

• Can be used where many liquid lubricants fail; also performs well with lubrication

• Ideal for heavy loads at moderate speeds or light loads at high speeds – max Pv 102,000, P-Load 36,250, V-SFM-1,900

• Effective in temperature range of -328°F to +536°F

• Standard tolerances vary by size. See items for specific tolerances

• RoHS, REACH compliant

• Both Metric and INCH versions are available

Isostatic TP Thrust Washer Bearings Metric Catalog

Isostatic TP Thrust Washer Bearings INCH Catalog
