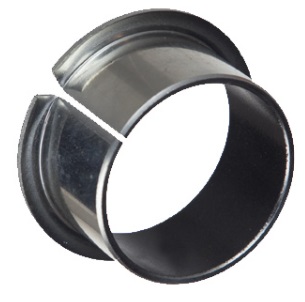

Isostatic TU Steel-Backed PTFE Lined Plain Flange Bearings

• Self-lubricating dry sliding bearing

• A steel-backed composite material comprised of:

  • Low carbon steel backing for extremely high load capacity-.50 – 2.7mm thick

  • Sintered bronze offers optimal heat dispersion –.20 - .35 mm thickness and

  • PTFE – lead sliding surface creates a low friction coefficient and allows for a wide temperature range – thickness .2 mm

• Can be used where many liquid lubricants fail; also performs well with lubrication

• Ideal for heavy loads at moderate speeds or light loads at high speeds – max Pv 102,000, P-Load 36,250, V-SFM-1,900

• Effective in temperature range of -328° F to +536° F

• Standard tolerances vary by size. See items for specific tolerances

• Available in both Metric and INCH versions

Isostatic TU Flange Bearings INCH Catalog

Isostatic TU Flange Bearings Metric Catalog

HVH Industrial works with manufacturers' specialized engineering teams to meet our customers' requirements and highest quality standards.
