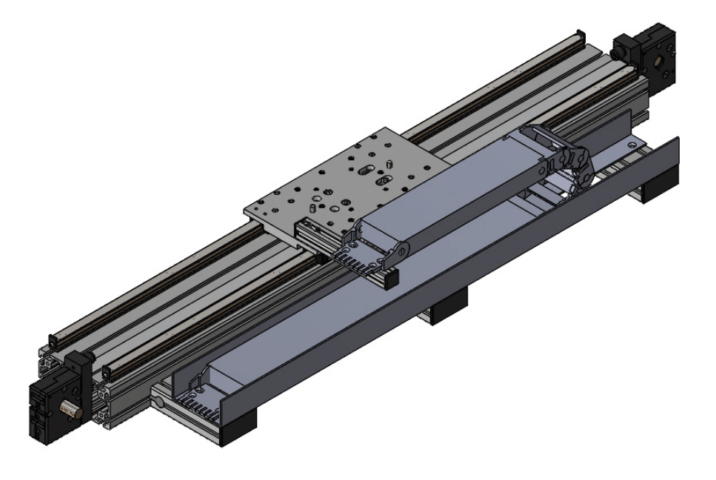

Macron MRA-RTU-1 Robotic Transport Units

The MRA-RTU-0 option of the Robotic Transport Unit offers a versatile solution and is available in both single and double-shaft types. These units can be mounted vertically, as wall mounts, or as ceiling mounts, providing installation flexibility.

Constructed with extruded aluminum actuators featuring T-slots, they ensure reliable 7th-axis motion for articulated robots while enabling easy mounting. The components of the unit are corrosion-resistant, ensuring durability and longevity. The features of this product include,

• High repeatability

• Fits MPG & MRG family of gearboxes

• Integrated cable management

• Near zero-backlash motion

• Suggested for use with the following Robots

  • Yaskawa HC10, GP7, and GP8
  • Fanuc LR mate and CR series
  • Kuka KR3, R Agilus series
  • Universal Robot family

Specifications

Motion: Any

Max Speed – m/s: 3

Max Load – kg: 222 kg

Moment Load Max – in.-lbs. [Nm]: 4400 in/lbs

Acceleration max – G’s: 1G @ 78 lbs

Beam Profile – mm: 80 x 160

Belt width – mm: 25 Standard

Travel Increments – mm [in]: 25 [0.98]

Robot-Transport-Units-Catalog

MRA-RTU-0-Datasheet
