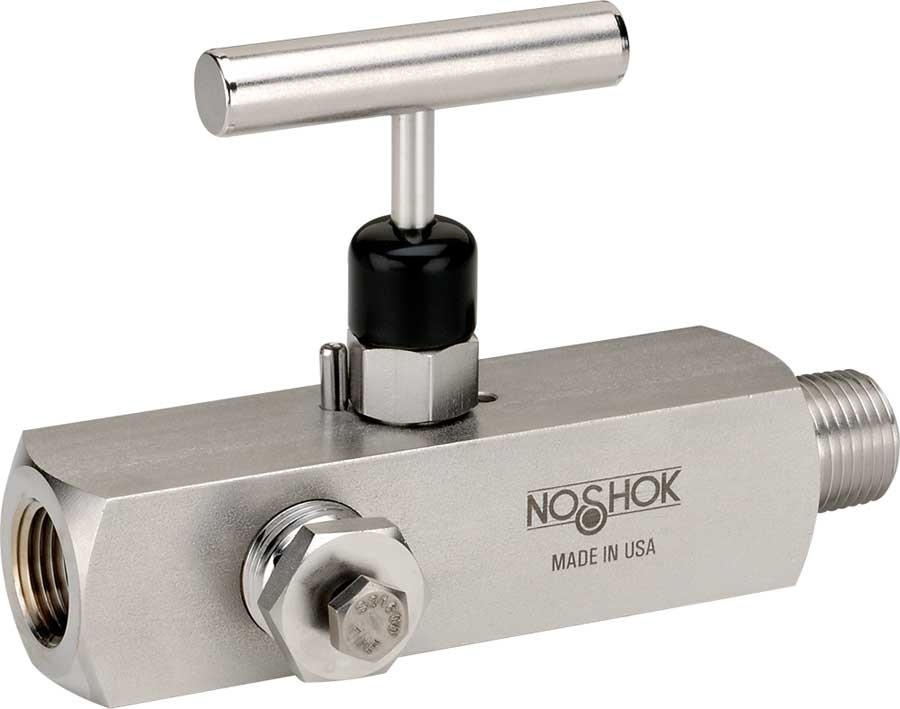

NOSHOK 200 Series Multiport, Hard Seat Needle Valves

NOSHOK 200 Series Multiport Hard Seat Needle Valves feature a multiport design that reduces the number of gauge and instrument connections to permanent piping installations, thereby decreasing potential leak paths. Optional bleed plugs allow pressure to be bled off without disturbing the permanent piping setup. Each valve is 100% helium leak tested to 1 x 10-4 ml/s, ensuring reliable performance.

They have a pressure rating of 10,000 psi at 200°F. The blow-out proof stem provides a secondary stem seal when in the fully open position. These valves are equipped with an FKM o-ring seal and a PTFE back-up ring below the stem threads to prevent corrosion and galling, with optional PTFE or Graphite packing. All stems are constructed from 316 Stainless Steel.

NOSHOK 200 Series Needle Valves
