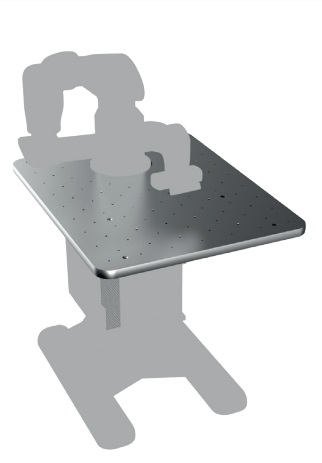

OB7 Collaborative Robots  Assembly Table

An efficient and optimized workspace that securely attaches to the OB7 Rolling Stand is available. Crafted from 6061-T6 anodized aluminum, it features integrated threaded work fixture hold-downs and pin registration holes.

Specifications:

• Dimensions: 702 mm x 902 mm (27.6” x 35.5”)

• Table Height: 914 mm (36”)

• Work Fixture Registration Holes: 6 mm on 100 mm centers (metric model) 1/4” on 4” centers

• Work Fixture Hold Down Holes: M6 on 100 mm centers (metric model) 1/4-20 on 4” centers

• Table Surface Material: 6061-T6 Anodized Aluminum

• Weight: 23 kg (51 lbs)

HVH Industrial Solutions is an authorized distributor of Productive Robotics.

We work closely with the Productive Robotics engineering team to provide superior customer service and engineering support.

If you have any questions, write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
