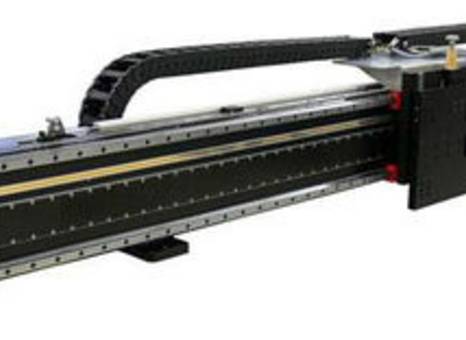

Printing Solutions

The critical factors for a perfectly printed image are the highest accuracy and outstanding geometrical performances on one single linear axis.

SCHNEEBERGER is offering a concentrate of best possible performances on extensive travels. Additional axes (Z and) T are perfectly integrated on the central axis to propose a fully integrated base for your printing device.

This specific build-up knowledge is integrated with our 3D systems solutions to propose the best possible solution for your 3D demands.

Typical specifications for "Printing" at POI*

• Configuration: X + Z (XYZ also available)

• Travel: up to 7000mm

• Accuracy: ≤ 20 µm (over TIR, mapped)

• Repeatability: ≤ 2 µm

• Stability: ≤ 50 nm (within 1s ptp)

• Move & Settle: < 500ms for 300mm

• Cst velocity: < 0.01% at <100mm/s

• Straightness: < 20um over 3000mm

• Flatness: < 20um over 3000mm

HVH Industrial works with manufacturers' specialized engineering teams to meet our customers' requirements and highest quality standards.

If you have any questions, write us via live chat (one of our team members will answer your questions), call, or send us a quote request. The HVH team is always ready to help you.
