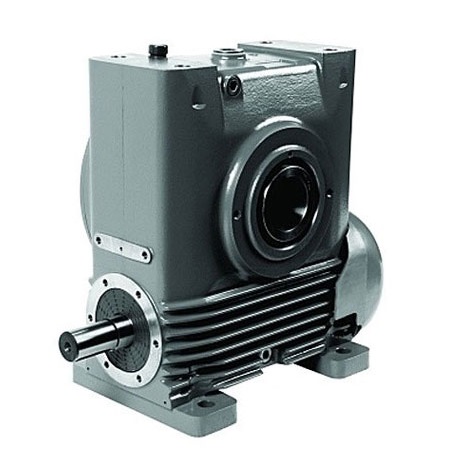

Radicon Series AM Mid Worm Gear Units
Radicon's Series AM worm gear units are designed with a single universal case for each size, ensuring a high degree of parts commonality and interchangeability. Available in under-driven, over-driven, and vertical configurations, they offer versatile shaft arrangements suitable for various medium power applications up to 75 kW. Featuring hollow bore outputs with optional plug-in shafts, these units allow for easy shaft replacement without dismantling. With 12 standard ratios from 5:1 to 70:1, the Series AM provides high efficiency, load-carrying capacity, and reliable long-term performance.
Series AM Options
|
Unit Sizes |
1002, 1252, 1602, 2002 |
|
Input Power |
Up to 132 HP (100 kW) |
|
Output Torque |
Up to 68000 lb.in (8500 Nm) |
|
Gear Ratios |
Up to 70/1 in single stage, 4900:1 in double reduction |
|
Motor Sizes |
IEC Frames from 80 to 132; NEMA Frames from 56 to 256 |
Radicon Series AM Mid Worm Gear Units Catalog
