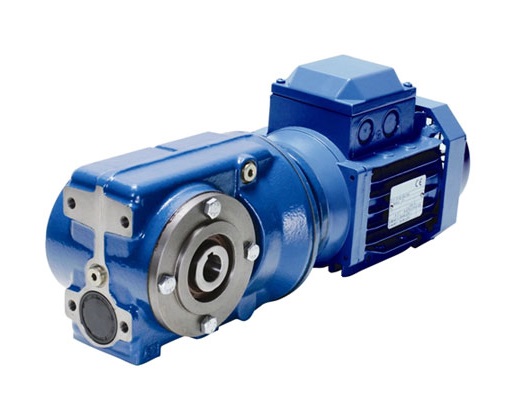

Radicon Series C Right Angle Helical Worm Geared Motors and Reducers
The Radicon Series C right angle helical worm geared motors and reducers deliver a compact and efficient drive solution, handling up to 60HP with a maximum torque of 88,500 lb.in. Built on a legacy of quality design and high-grade materials, these units offer increased efficiency, high load capacity, quiet operation, and reliability.
Available in 8 sizes, they can be configured with plug-in output shafts, bolt-on flanges, and various mounting options. Supplied as complete geared motors, motor-ready units, or reducers with keyed input shafts, these cast iron gear cases are designed for easy distribution and quick availability.
Series C Options
|
Unit Sizes |
03, 04, 05, 06, 07, 08, 09, 10 |
|
Input Power |
Up to 50 HP (45 kW) |
|
Output Torque |
Up to 76,700 lb.in (8,700 Nm) |
|
Gear Ratios |
From 8:1 to 250:1 in a double unit and 14,000:1 in combined units |
|
Motor Sizes |
NEMA Frames from 56 to 320; IEC Frames from 63 to 225 |
Radicon Series C Right Angle Helical Worm Geared Motors and Reducers Catalog
HVH Industrial Solutions is an authorized distributor of Radicon Drive Systems, Inc.
We work closely with the Radicon engineering team to provide superior customer service and engineering support.
If you have any questions write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
