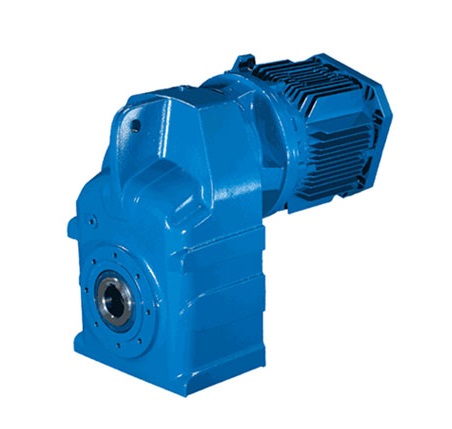

Radicon Series F Shaft Mounted Helical Geared Motor and Reducers
The Radicon Series F shaft mounted helical geared motors and reducers provide a reliable solution with an integral torque reaction bracket. These units can be equipped with rubber torque bushings, output flanges, shrink disc bores, solid output shafts, and KIBO sleeves for easy maintenance.
Manufactured from modular kits for efficient distribution, they are available in double to quintuple reduction configurations, either in flange or shaft mount designs. Offered as motorized units, motor-ready, or reducers with keyed input shafts, all gear cases are constructed from durable cast iron.
Series F Options
|
Unit Sizes |
02, 03, 04, 05, 06, 07, 08, 09, 10 |
|
Input Power |
Up to 50 HP (45 kW) |
|
Output Torque |
Up to 71,000 lb.in (8,000 Nm) |
|
Gear Ratios |
From 6.3/1 to 360/1 up to Triple reduction and up to 3600/1 in combined unit |
|
Motor Sizes |
NEMA frames from 56 to 440 and IEC Frames from 63 to 315. |
Radicon Series F Shaft Mounted Helical Geared Motor and Reducers Catalog
HVH Industrial Solutions is an authorized distributor of Radicon Drive Systems, Inc.
