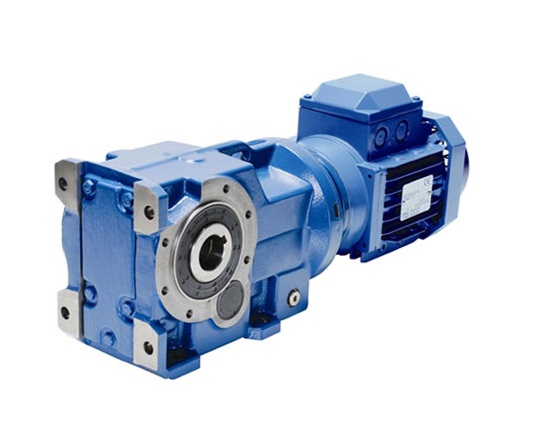

Radicon Series K Helical Bevel Geared Motors
The Radicon Series K right angle helical bevel geared motors offer high load capacity, increased efficiency compared to worm units, quiet operation, and reliability. Designed with integral cast feet for flexible mounting, these units can feature single or double extended output shafts or hollow shafts. Available in shaft-mounted or output flange configurations, they can be mounted horizontally or vertically, with an optional bolt-on torque reaction bracket.
Manufactured from modular kits for ease of distribution, they come as triple or quintuple reduction units, in flange, foot, or shaft mount designs, and are available as motorized, motor-ready, or reducers with keyed input shafts. All gear cases are made from cast iron.
Series K Options
|
Unit Sizes |
03, 04, 05, 06, 07, 08, 09, 10, 12, 15, 16, 18 |
|
Input Power |
Up to 150 HP (160 kW) |
|
Output Torque |
Up to 292,000 lb.in. (33,000 Nm) |
|
Gear Ratios |
Up to 125/1 in triple reduction and upto 7,100/1 in Combined Unit |
|
Motor Sizes |
NEMA Frames from 56 to 440. IEC Frames from 63 to 315. |
Radicon Series K Helical Bevel Geared Motors Catalog
