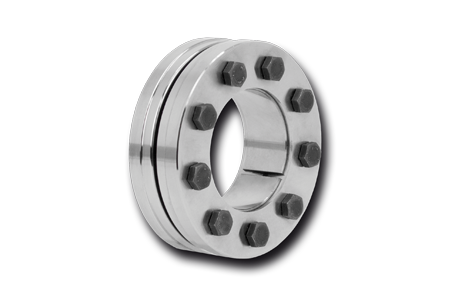

Ringspann Three-Part Shrink Discs 603 S
Key Features
-
For hollow shafts or hubs with outer diameters of 14 mm up to 190 mm
-
Tightening of clamping screws with a torque wrench
-
Transmissible torque of 18 Nm up to 156100 Nm
-
Centers the hollow shaft or hub to the shaft
-
Easy disassembly without jacking screws
If you have any questions write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
or
Requesting ... File size should not exceed 20 MB.
Ringspann Three-Part Shrink Discs 603 S
Key Features
-
For hollow shafts or hubs with outer diameters of 14 mm up to 190 mm
-
Tightening of clamping screws with a torque wrench
-
Transmissible torque of 18 Nm up to 156100 Nm
-
Centers the hollow shaft or hub to the shaft
-
Easy disassembly without jacking screws
If you have any questions write us via live chat (one of our team members will answer your questions), give us a call, or send us a quote request. The HVH team is always ready to help you.
|
MPN
|
type
|
d mm
|
b mm
|
l1 mm
|
l2 mm
|
Brand
|
Price
|
Actions
|
|---|---|---|---|---|---|---|---|---|
| 4200-140301-C00001 | RLK 603 S-140x230 | 230 | 68 | 46 | 60 | RINGSPANN | Request a quote | |
|
4200-140301-C00001 RFQ
|
||||||||
| 4200-090301-C00000 | RLK 603 S-90x155 | 155 | 44.3 | 30 | 39 | RINGSPANN | Request a quote | |
|
4200-090301-C00000 RFQ
|
||||||||
| 4200-095301-C00000 | RLK 603 S-95x170 | 170 | 52.3 | 36 | 47 | RINGSPANN | Request a quote | |
|
4200-095301-C00000 RFQ
|
||||||||
| 4200-100301-C00000 | RLK 603 S-100x170 | 170 | 52.3 | 36 | 47 | RINGSPANN | Request a quote | |
|
4200-100301-C00000 RFQ
|
||||||||
| 4200-110301-C00000 | RLK 603 S-110x185 | 185 | 62 | 45 | 56 | RINGSPANN | Request a quote | |
|
4200-110301-C00000 RFQ
|
||||||||
| 4200-115301-C00000 | RLK 603 S-115x185 | 185 | 62 | 45 | 56 | RINGSPANN | Request a quote | |
|
4200-115301-C00000 RFQ
|
||||||||
| 4200-120301-C00000 | RLK 603 S-120x215 | 215 | 60 | 44 | 54 | RINGSPANN | Request a quote | |
|
4200-120301-C00000 RFQ
|
||||||||
| 4200-125301-C00000 | RLK 603 S-125x215 | 215 | 60 | 44 | 54 | RINGSPANN | Request a quote | |
|
4200-125301-C00000 RFQ
|
||||||||
| 4200-130301-C00000 | RLK 603 S-130x215 | 215 | 60 | 44 | 54 | RINGSPANN | Request a quote | |
|
4200-130301-C00000 RFQ
|
||||||||
| 4200-135301-C00000 | RLK 603 S-135x212 | 212 | 85 | 63 | 77 | RINGSPANN | Request a quote | |
|
4200-135301-C00000 RFQ
|
||||||||
| 4200-085301-C00000 | RLK 603 S-85x155 | 155 | 46.3 | 33 | 41 | RINGSPANN | Request a quote | |
|
4200-085301-C00000 RFQ
|
||||||||
| 4200-140301-C00000 | RLK 603 S-140x304 | 304 | 106 | 84 | 96 | RINGSPANN | Request a quote | |
|
4200-140301-C00000 RFQ
|
||||||||
| 4200-155301-C00001 | RLK 603 S-155x265 | 265 | 72 | 50 | 64 | RINGSPANN | Request a quote | |
|
4200-155301-C00001 RFQ
|
||||||||
| 4200-155301-C00000 | RLK 603 S-155x263 | 263 | 92 | 68 | 84 | RINGSPANN | Request a quote | |
|
4200-155301-C00000 RFQ
|
||||||||
| 4200-160301-C00000 | RLK 603 S-160x290 | 290 | 81 | 56 | 71 | RINGSPANN | Request a quote | |
|
4200-160301-C00000 RFQ
|
||||||||
| 4200-165301-C00000 | RLK 603 S-165x290 | 290 | 81 | 56 | 71 | RINGSPANN | Request a quote | |
|
4200-165301-C00000 RFQ
|
||||||||
| 4200-170301-C00000 | RLK 603 S-170x290 | 290 | 81 | 56 | 71 | RINGSPANN | Request a quote | |
|
4200-170301-C00000 RFQ
|
||||||||
| 4200-175301-C00000 | RLK 603 S-175x300 | 300 | 124 | 98 | 114 | RINGSPANN | Request a quote | |
|
4200-175301-C00000 RFQ
|
||||||||
| 4200-190301-C00000 | RLK 603 S-190x350 | 350 | 130 | 98 | 117 | RINGSPANN | Request a quote | |
|
4200-190301-C00000 RFQ
|
||||||||
| 4200-040301-C00000 | RLK 603 S-40x72 | 72 | 30 | 22 | 26 | RINGSPANN | Request a quote | |
|
4200-040301-C00000 RFQ
|
||||||||
| 4200-016301-C00000 | RLK 603 S-16x41 | 41 | 18.5 | 12 | 15 | RINGSPANN | Request a quote | |
|
4200-016301-C00000 RFQ
|
||||||||
| 4200-018301-C00000 | RLK 603 S-18x44 | 44 | 18.5 | 12 | 15 | RINGSPANN | Request a quote | |
|
4200-018301-C00000 RFQ
|
||||||||
| 4200-020301-C00000 | RLK 603 S-20x46 | 46 | 21 | 12 | 17.5 | RINGSPANN | Request a quote | |
|
4200-020301-C00000 RFQ
|
||||||||
| 4200-021301-C00000 | RLK 603 S-21x50 | 50 | 22.5 | 16 | 19 | RINGSPANN | Request a quote | |
|
4200-021301-C00000 RFQ
|
||||||||
| 4200-024301-C00000 | RLK 603 S-24x50 | 50 | 23 | 16 | 19 | RINGSPANN | Request a quote | |
|
4200-024301-C00000 RFQ
|
||||||||
| 4200-030301-C00000 | RLK 603 S-30x52 | 52 | 27 | 16 | 23 | RINGSPANN | Request a quote | |
|
4200-030301-C00000 RFQ
|
||||||||
| 4200-030301-C00001 | RLK 603 S-30x60 | 60 | 26 | 19 | 22 | RINGSPANN | Request a quote | |
|
4200-030301-C00001 RFQ
|
||||||||
| 4200-036301-C00000 | RLK 603 S-36x72 | 72 | 30 | 22 | 26 | RINGSPANN | Request a quote | |
|
4200-036301-C00000 RFQ
|
||||||||
| 4200-038301-C00000 | RLK 603 S-38x72 | 72 | 30 | 22 | 26 | RINGSPANN | Request a quote | |
|
4200-038301-C00000 RFQ
|
||||||||
| 4200-014301-C00000 | RLK 603 S-14x37 | 37 | 15 | 9 | 12 | RINGSPANN | Request a quote | |
|
4200-014301-C00000 RFQ
|
||||||||
| 4200-044301-C00000 | RLK 603 S-44x80 | 80 | 30 | 22 | 26 | RINGSPANN | Request a quote | |
|
4200-044301-C00000 RFQ
|
||||||||
| 4200-048301-C00000 | RLK 603 S-48x80 | 80 | 30 | 22 | 26 | RINGSPANN | Request a quote | |
|
4200-048301-C00000 RFQ
|
||||||||
| 4200-050301-C00000 | RLK 603 S-50x90 | 90 | 32 | 22 | 28 | RINGSPANN | Request a quote | |
|
4200-050301-C00000 RFQ
|
||||||||
| 4200-055301-C00000 | RLK 603 S-55x100 | 100 | 35 | 25 | 31 | RINGSPANN | Request a quote | |
|
4200-055301-C00000 RFQ
|
||||||||
| 4200-062301-C00000 | RLK 603 S-62x110 | 110 | 35 | 25 | 31 | RINGSPANN | Request a quote | |
|
4200-062301-C00000 RFQ
|
||||||||
| 4200-068301-C00000 | RLK 603 S-68x115 | 115 | 35 | 25 | 31 | RINGSPANN | Request a quote | |
|
4200-068301-C00000 RFQ
|
||||||||
| 4200-075301-C00000 | RLK 603 S-75x138 | 138 | 38.3 | 26 | 33 | RINGSPANN | Request a quote | |
|
4200-075301-C00000 RFQ
|
||||||||
| 4200-080301-C00000 | RLK 603 S-80x145 | 145 | 38.3 | 25 | 33 | RINGSPANN | Request a quote | |
|
4200-080301-C00000 RFQ
|
||||||||
