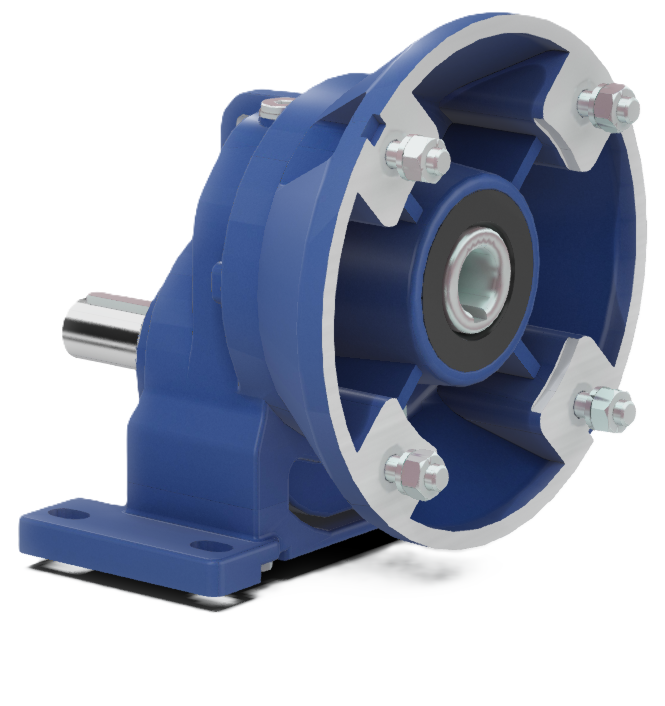

STM Single Stage Inline Gear Reducer AR/1

STM high-tech AR/1 single-stage gearboxes are based on a single body piece casting, which enhances rigidity. The unique internal shape of the body directs oil flow to all moving parts, reducing noise levels and enhancing sealing tightness. Additionally, the modular output flange provides exceptional versatility in application.

A/1 single-stage inline gearboxes provide an optimal balance between torque and cost for industrial applications that require a high number of revolutions on the output shaft. These gearboxes are used in high-load applications without risks of deformation which might negatively impact technical performance.

Features & Specifications

• Strength and solidity

• Flexibility in applications

• High output torque

• Fully customizable to meet your needs

• Ratio: Min 1/1.2 - Max 1/7.5

• Power (Kw): Min 0,47 - Max 54,1

• Torque (Nm): Min 20,9 - Max 600

High-Tech Motion Technical Catalog

HVH Industrial Solutions is an authorized distributor of STM SPA.

We work closely with the S.T.M. engineering team to provide superior customer service and engineering support.
