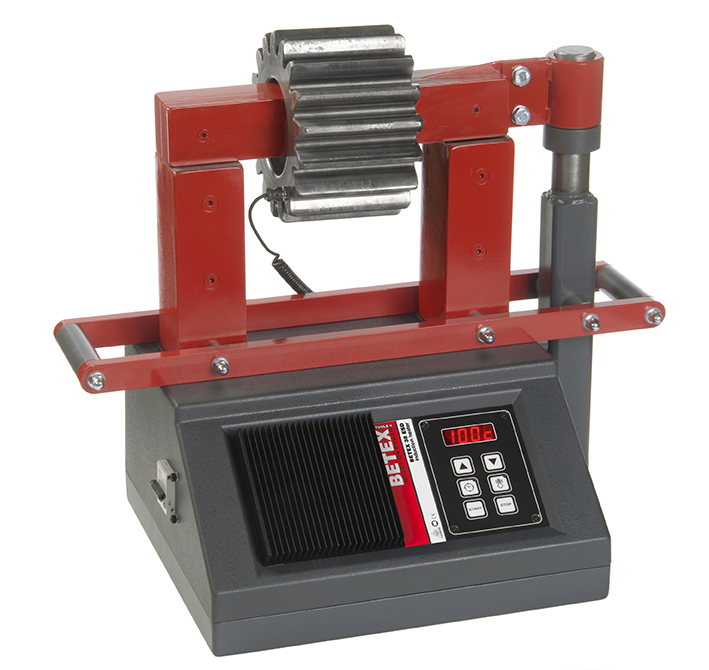

Betex Bearing Induction Heater, 150kg 400V
Betex Bearing Induction Heaters, 400V with the unique Betex swing arm construction and support for horizontal and vertical heating. The product maximum temperature is 2400 C (optional till 3500 C).
Bearing dimensions include:
Min. inside diameter: 30/110 Ø
Max. outside diameter: 500/720 mm
Max. width: 200 mm
Max. weight: 150 kg.
MPN: 310630
Specifications
| display | Yes |
| frequency Hz | 50/60 |
| Mpn | 310630 |
| magnetic probe | Yes |
| autom. Demagnetization, <2A/cm2 | Yes |
| facility power standard 230V | 8kVA |
| weight kg | 53 |
| voltage/Amp | 2~ 400V/20A |
| thermal protection | Yes |
| swing arm | Yes |
