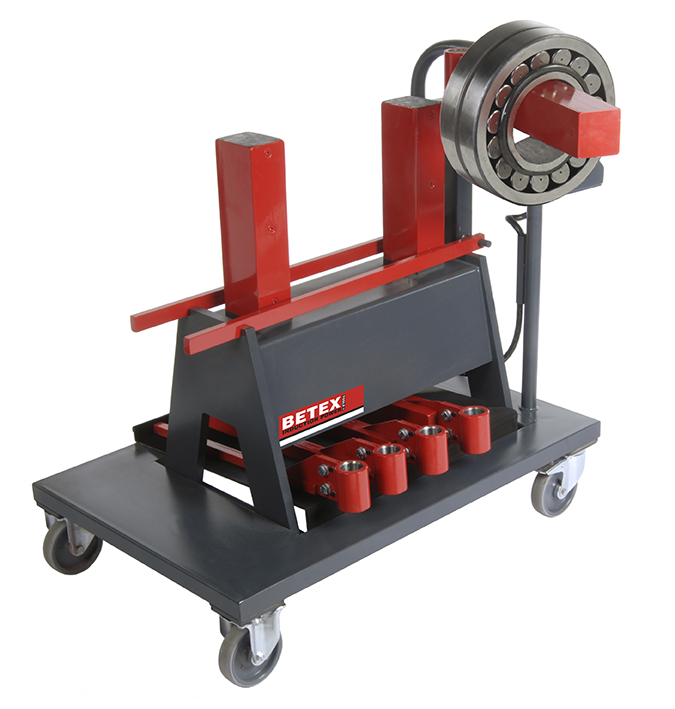

Betex Bearing Induction Heater, 300kg 600V
600V Mobile Bearing Induction Heater up to 300kg with unique swing arm construction for horizontal and vertical heating. The product maximum temperature is 2400 C (optional till 3500 C).
Bearing dimensions include:
Min. inside diameter: 30 Ø
Max. outside diameter: 720 mm
Max. width: 340 mm
Max. weight: 300 kg.
MPN: 290690
Specifications
| facility power standard 230V | 12kVA |
| display | Digital |
| weight kg | 125 |
| magnetic probe | 1 |
| swing arm | Yes |
| frequency Hz | 50/60 |
| voltage/Amp | 2~ 600V |
| ampere | 20 |
| thermal protection | Yes |
| Mpn | 290690 |
| autom. Demagnetization, <2A/cm2 | Yes |
