Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.

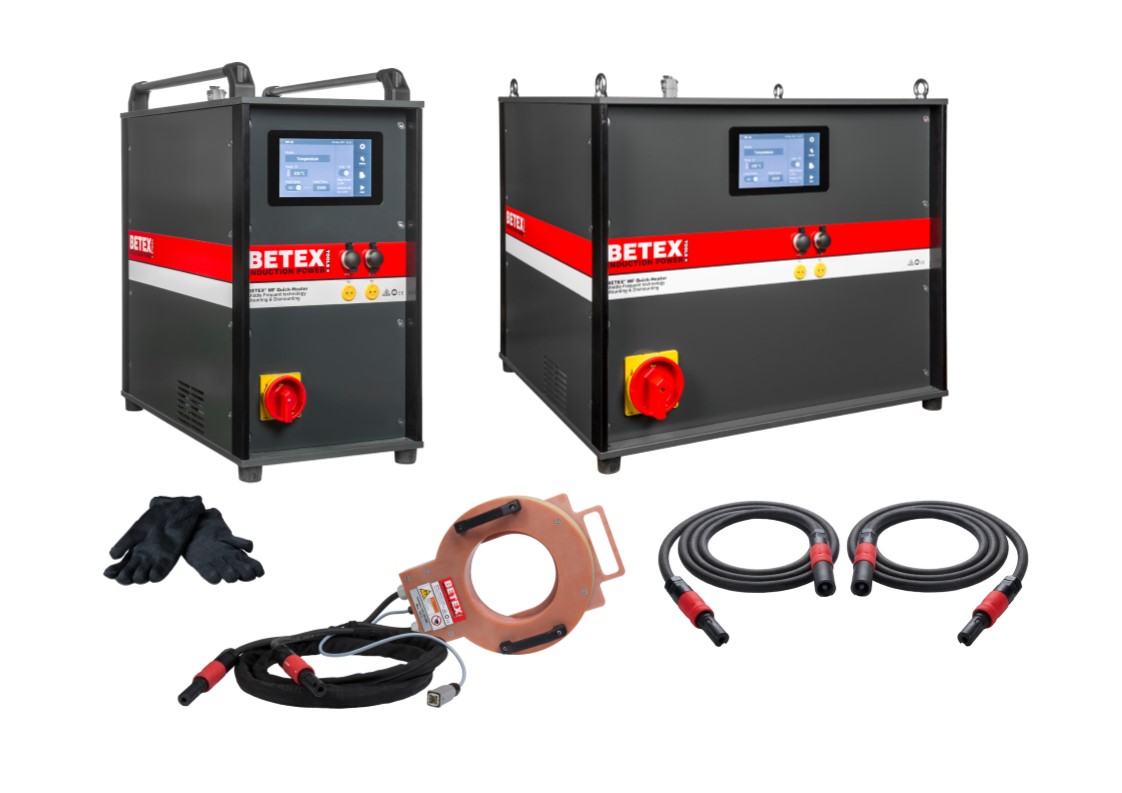

Betex Induction Heating Generator 2.5, 22kW 500V
Induction Heating Generators 2.5, 22kW 500V, that provide smart and eco-friendly way of heating and safe, energy efficient operation. The heaters applications include mounting and dismounting of bearings, bearing houses, sleeves and power transmissions components, mounting of gears, couplings and others.
Min. winding diameter flexible Inductors 22kW
|
Length m / °C |
Ø Cable |
Min. Winding- diameter |
|
15/20/25/30m¹ /180°C |
Ø 12 mm |
ca. 75 mm |
|
15/20/25/30m¹ /180°C |
Ø 15 mm |
ca. 100 mm |
MPN: 32522500
Specifications
| signalling by end heating cycle | green continuous light/acoustic signal |
| extra thermo couple input | Yes |
| setpoint power | Yes |
| temp. sensor max 300C | Yes |
| generator mm | 600x300x600 |
| power kW | 22 |
| heating curve in display | Yes |
| USB connection | No |
| setpoint temperature | Yes |
| heat log | No |
| signalling by operational state | green flashing light |
| delta T | Yes |
| accuracy C | 35 |
| signalling by error message | red continuous light/acoustic signal |
| frequency Hz | 50/60 |
| display mm | 35 |
| ampere | 28 |
| trolley | option |
| Mpn | 32522500 |
