Betex Induction Heating Generator 2.5, 44kW 500V

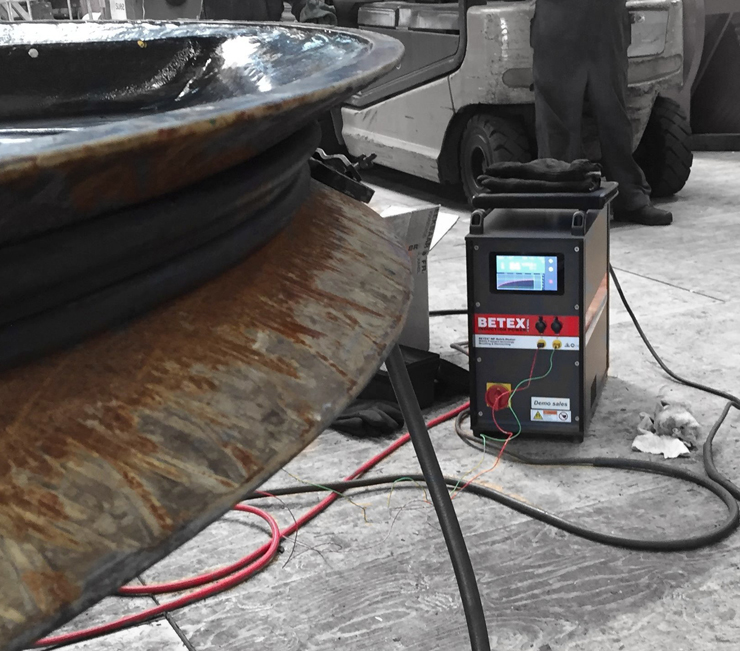

Induction Heating Generators 2.5, 44kW 500V, that provide smart and eco-friendly way of heating and safe, energy efficient operation. The heaters applications include mounting and dismounting of bearings, bearing houses, sleeves and power transmissions components, mounting of gears, couplings and others.
Min. winding diameter flexible Inductors 44kW
|
Length m / °C |
Ø Cable |
Min. Winding- diameter |
|
15/20/25/30m¹ /180°C |
Ø 19 mm |
ca. 140 mm |
|
15/20/25/30m¹ /300°C |
Ø 28 mm |
ca. 220 mm |
MPN: 32544500
Specifications
| temp. sensor max 300C | Yes |
| accuracy C | 35 |
| extra thermo couple input | Yes |
| setpoint power | Yes |
| heating curve in display | Yes |
| setpoint temperature | Yes |
| USB connection | No |
| heat log | No |
| ampere | 55 |
| signalling by error message | red continuous light/acoustic signal |
| signalling by operational state | green flashing light |
| signalling by end heating cycle | green continuous light/acoustic signal |
| Mpn | 32544500 |
| generator mm | 600x650x580 |
| delta T | Yes |
| trolley | option |
| power kW | 44 |
| display mm | 35 |
| frequency Hz | 50/60 |
