Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
Rosta Tensioner Devices SE-FE
SE-FE series of Tensioning Elements are heat resistat, powerful, compact designed devices with long compensation travel. They are intended for front-mounting applications on engines such as cooling compressors and fan drives. Steel parts of the tenshioning device are black painted.

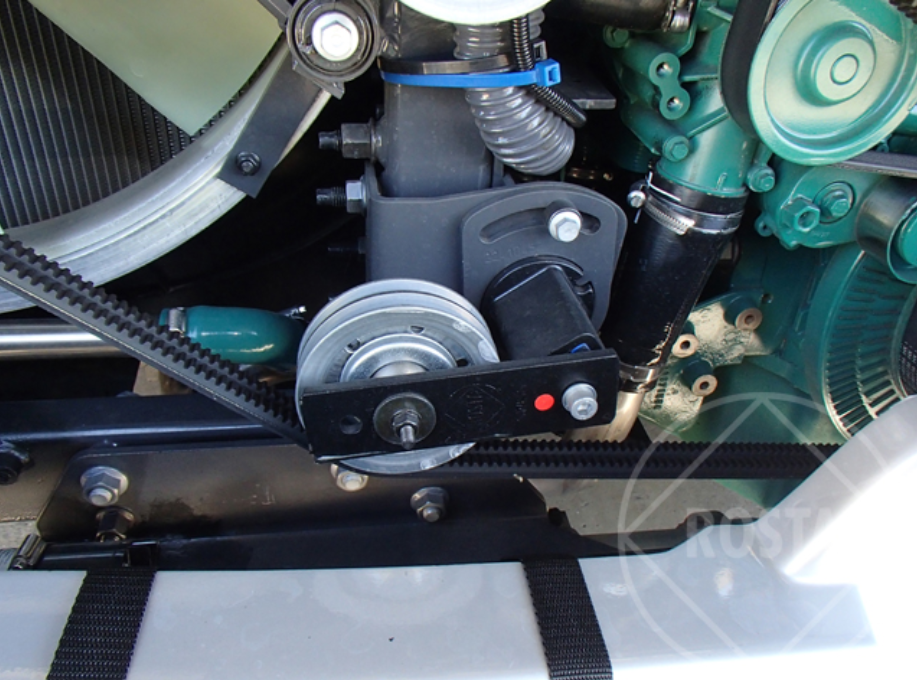

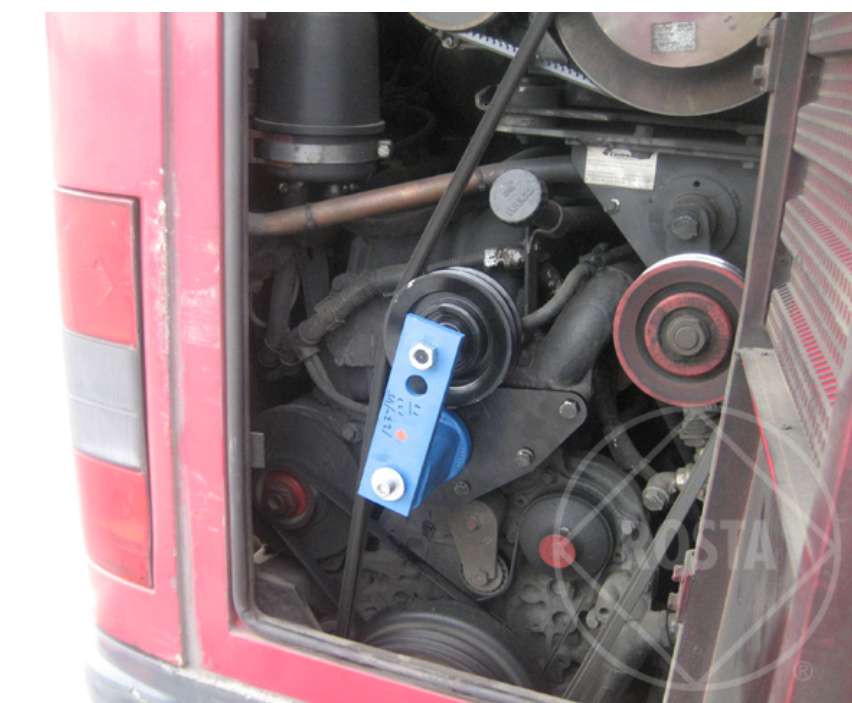

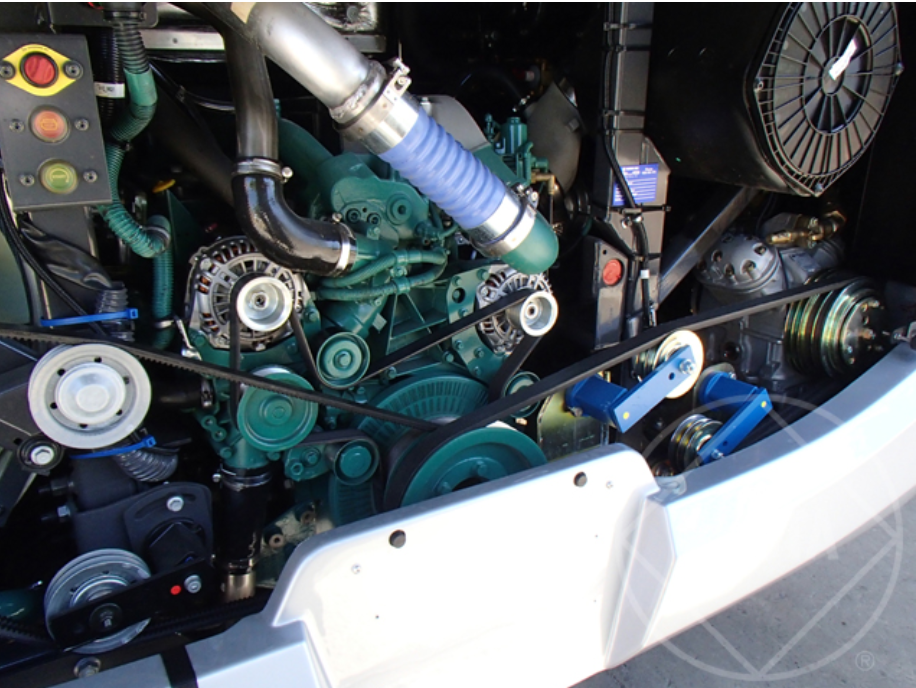

Nowdays nearly all busses for passenger transport are equipped with an air-conditioning system. The diesel engine of the bus serves as energy source of the cooling compressor. The piston- or rotation compressors are driven via V- or Poly-V belts from the spur wheel of the main engine. This belt transmission requires a slippage-free power train to ensure the full capacity of the cooling compressors.
MPN: 06 093 904
Specifications
| Weight (kg) | 2.1 |
| U | 34.3 |
| L | 155 |
| K | 50 |
| J2 | 100 |
| J1 | 130 |
| H | M10 |
| E | 110 |
| G | 10 |
| s max with J1 [N] | 65 |
| øD | 78 |
| s max with J1 [N] | 65 |
| F max. with J1 [N] | 810 |
| F max. with J1 [N] | 810 |
| Working temperature | – 30°C to + 90°C |
| Rubber Type | Rubmix 20 |
| Type | SE-FE 27 |
| M ca. | 16 |
| N | 52 |
| O | 15 |
| R | 15 |
| øT | 12.5 |
