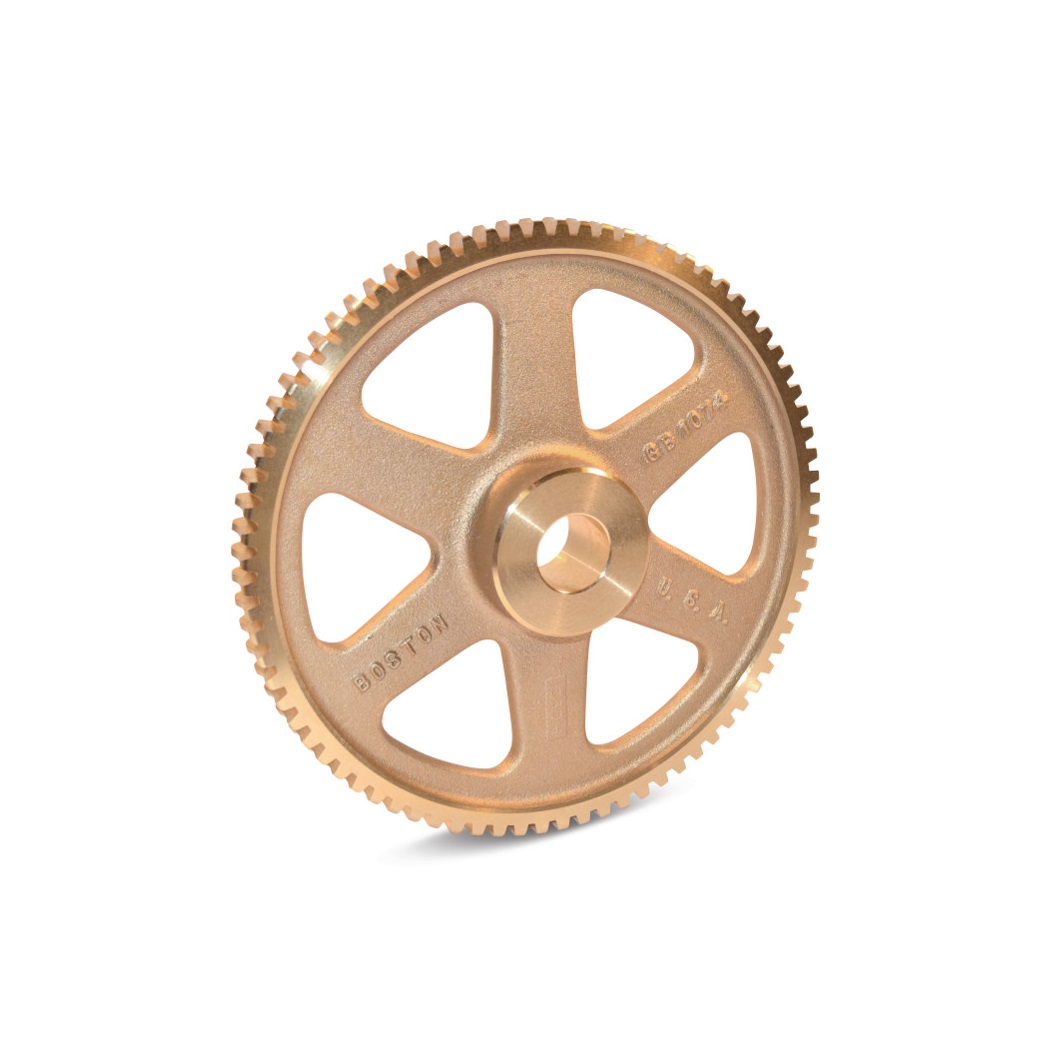

Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
D1143 - 16DP, 14.5 PA, 30 Teeth, RH, Double Thread Bronze Worm Gear by Boston Gear
16DP, 14.5 PA, 30 Teeth, RH, Double Thread Bronze D1143 Boston Gear Worm Gears provide effective power transmission in applications requiring high-ratio speed reduction in a limited space using right angle (90°), non-intersecting shafts. You can download the product's 3D model below.
MPN: D1143
Specifications
| pitch diameter | 1.88 |
| diameter pitch | 16 |
| number of teeth | 30 |
| pressure angle | 14.5 |
| hub diameter | 0.75 in |
| number of threads | Double Thread |
| hand | Right Hand |
| ratio | 15:1 |
| center distance | 1.25 in |
| mating worm hard | 16 DP, Double Thread |
| bore size | 0.31 in |
| gear outside diameter | 2.03 |
| material | Bronze |
