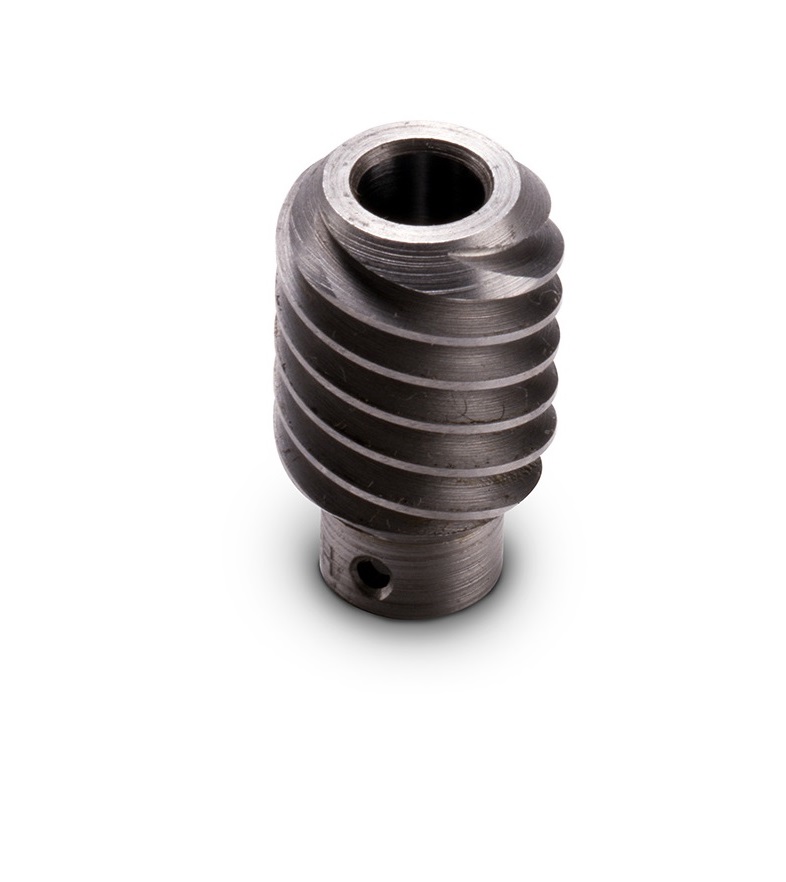

Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
H1618 - 10DP, 14.5PA, 1.25 in, RH Steel/Hardened Worm by Boston Gear
Boston Gear H1618 10DP, 14.5PA, 1.25 in, RH Steel/Hardened Worms provide an effective operation for power transmission applications requiring high ratio speed reduction in a limited space using right angle (90°), non-intersecting shafts. You can download the product's 3D model below.
MPN: H1618
Specifications
| material | Steel, Hard-G & P Thread |
| pressure angle | 14.5 |
| outside diameter | 1.45 in |
| face thread length | 1.38 in |
| keyway size | 3/16" Keyway Only |
| bore size | 0.75 in |
| diameter pitch | 10 |
| mating gear | 10DP |
| hand | Right Hand |
| hub diameter | 0.00 in |
| pitch diameter | 1.25 in |
| number of threads | Quad Thread |
