RLK 235 TC 170 x 240 Cone Clamping Elements by RINGSPANN
Ringspann RLK 235 TC-170 x 240 type of Cone Clamping Element centers the shaft to the hub. Double slot is available for high centering accuracy. They feature the highest transmissible torque and machining quality. There is no axial displacement between hub and shaft during clamping procedure. You can download the product's 3D model below.
MPN: RLK 235 TC-170 x 240

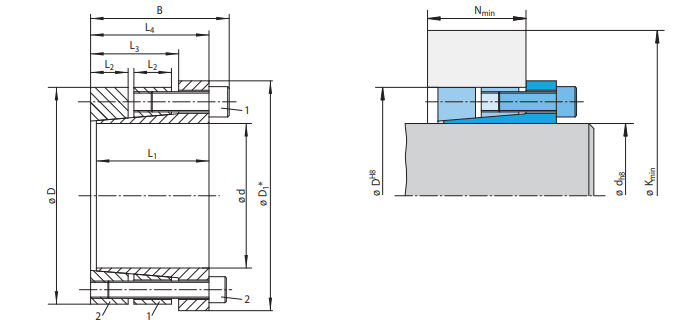

Specifications
| d mm | 240 |
| b mm | 142 |
| l1 mm | 114 |
| l2 mm | 40 |
| l3 mm | 92 |
| l4 mm | 122 |
| transmissible torque or axial force m1 nm | 47700 |
| transmissible torque or axial force m2 nm | 30700 |
| m nm | 78400 |
| transmissible torque or axial force f1 kn | 561 |
| transmissible torque or axial force f2 kn | 361 |
| f nm | 922 |
| contact pressure at shaft pw1 nmm2 | 219 |
| contact pressure at shaft pw2 nmm2 | 141 |
| contact pressure at hub pn1 nmm2 | 155 |
| contact pressure at hub pn2 nmm2 | 100 |
| clamping screw 1 tightening torque ms nm | 690 |
| clamping screw 1 number | 8 |
| clamping screw 1 size | M 20 |
| clamping screw 2 tightening torque ms nm | 355 |
| clamping screw 2 number | 8 |
| clamping screw 2 size | M 16 |
| weight kg | 20.58 |
