RWK 500 55 x 95 Cone Clamping Couplings by RINGSPANN

RWK 500-55 x 95 Cone Clamping Couplings are compact designed rigid couplings with a transmission of torque and axial forces. The shafts are not weakened by keyways, and there is no fretting corrosion like with keyway connections. These rigid couplings are used with slitter winders in the paper industry. You can download the product's 3D model below.


Typically ships in :

2 day

Specifications

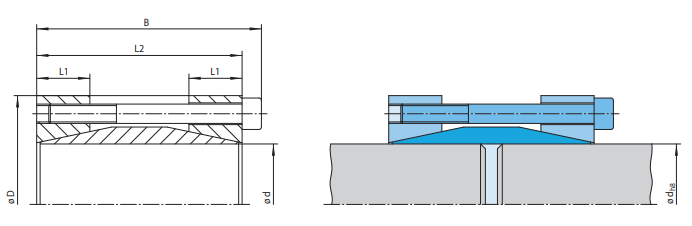

coupling size d mm

55

max transmissible torque or axial force tk max nm

1700

max transmissible torque or axial force fax max kn

61

tightening torque ms nm

37

clamping screws number

8

clamping screws size

M 8

clamping screws length

80

d mm

95

b mm

93

l1 mm

22

l2 mm

85

weight kg

2

Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.

RWK 500 55 x 95 Cone Clamping Couplings by RINGSPANN

MPN: RWK 500-55 x 95

Quantity

Request a quote

Product Description

RWK 500-55 x 95 Cone Clamping Couplings are compact designed rigid couplings with a transmission of torque and axial forces. The shafts are not weakened by keyways, and there is no fretting corrosion...

Product Specifications
