Ringspann Cone Clamping Elements RLK 130 100 x 145
RLK 130 series of locking elements are hub-shaft connections with very high transmissible torque. They provide a backlash-free connection between an eccentric lift unit and a sprocket to the drive shaft of a hoisting device. The eccentric force applied to the eccentric lift unit results in the Cone Clamping Element transmitting not only torque but also forces and bending moments. You can download the product's 3D model below
MPN: 4204-100001-000000
Specifications

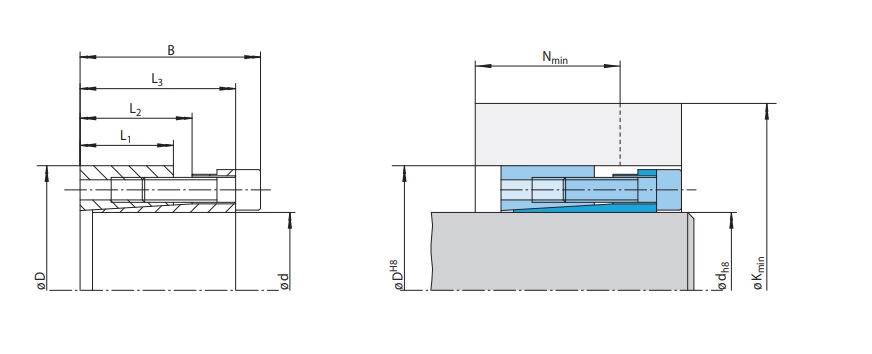

| d mm | 145 |
| b mm | 80 |
| l1 mm | 45 |
| l2 mm | 52 |
| l3 mm | 68 |
| transmissible torque or axial force m nm | 16000 |
| transmissible torque or axial force f kn | 320 |
| contact pressure at shaft pw nmm2 | 192 |
| contact pressure at hub pn nmm2 | 133 |
| clamping screw tightening torque ms nm | 144 |
| clamping screw number | 8 |
| clamping screw size | M 12 |
| clamping screw length mm | 35 |
| weight kg | 3.9 |
| type | RLK 130-100 x 145 |
