Cage Freewheels SF 57 18 5 P
Cage Freewheels SF … P are sprag freewheels to be installed between customer-supplied inner and outer rings.
Nominal torques up to 5 800 Nm.
Cage Freewheels SF … P Applications:
• Backstop
• Overrunnung Clutch
• Indexing Freewheel
• You can download the product's 3D model below
MPN: SF 57-18-5 P

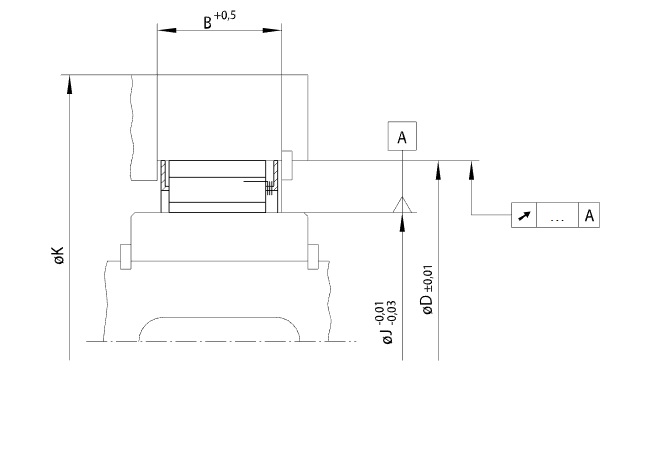

Specifications
| type | SF |
| size | 57-18.5 |
| j mm | 57 |
| d mm | 75 |
| b mm | 18.5 |
| design | P |
| k mm | 100 |
| sprags quantity | 24 |
| weight kg | 0.13 |
