Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
Ringfeder 7003 50x80 Locking Assembly
Ringfeder RFN7003, 50d, 80D self-centering, two piece locking assembly is used due to the slit, as well as larger tolerances. The hub slightly positions during mounting towards the screw head. For disassembly only few release screws are required. Through optimized geometry of the flange, the deformation of the flange is significantly lower than with standard products. You can download the product's 3D model below.
MPN: RfN 7003-50x80

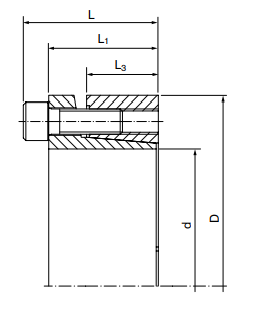

Specifications
| series | RFN7003 |
| d mm | 80 |
| l mm | 41 |
| l1 mm | 33 |
| l3 mm | 20 |
| t nm | 2430 |
| fax kn | 85 |
| pw nmm2 | 260 |
| pn nmm2 | 160 |
| dg mm | 8 |
| ta nm | 35 |
