Two Part Shrink Disc RfN 4181 480x800 380
Ringfeder RfN 4181 is a two-part shrink disc heavy duty series with additional guide mechanism for the inner ring. RfN 4181 shrink disc connections are suitable for securing all types of hubs onto shafts and axles and are applicable for static, dynamic and impact loads. You can download the product's 3D model below.
MPN: RfN-4181-480x800-380

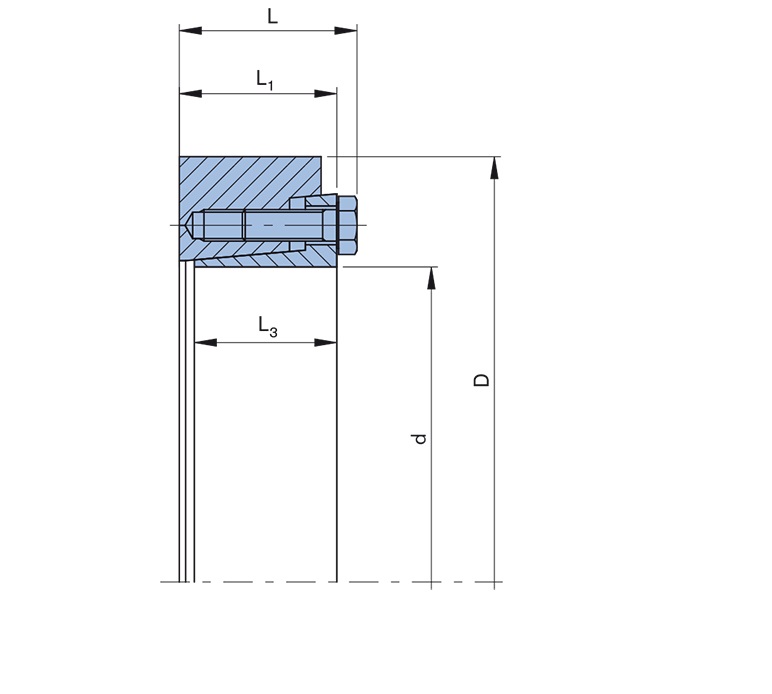

Specifications
| d mm | 790 |
| dw mm | 380 |
| l mm | 243.7 |
| l1 mm | 225 |
| l3 mm | 201 |
| t nm | 1815000 |
| fax kn | 9552 |
| dg mm | 30 |
| ta nm | 1900 |
| gw kg | 495.4 |
