Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
Ringfeder Mini Series Shrink Discs RfN 4073 56x91 50
Ringfeder Shrink Discs RfN 4073 Mini series with low moment of inertia, particularly for mechanical seals and small gears. Its particularly light structure makes the Ringfeder RfN 4073 series ideal for applications with reduced requirements for transfer values and/or very low to no dynamic loads. The preload force can be set targeted to the needs of the relevant application. You can download the product's 3D model below.
MPN: RfN-4073-56x91-50

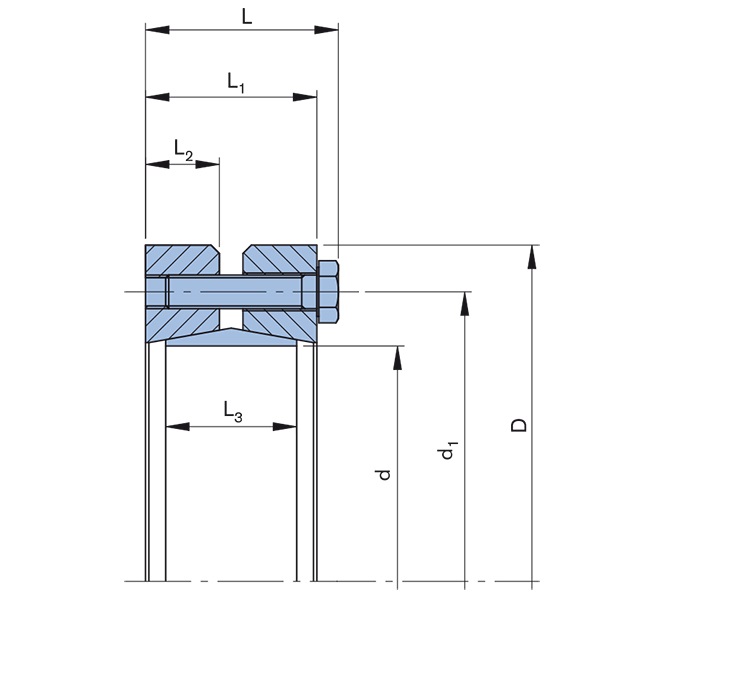

Specifications
| d mm | 91 |
| dw mm | 50 |
| d1 mm | 73 |
| l mm | 22,5 |
| l1 mm | 19 |
| l3 mm | 14 |
| t nm | 710 |
| p nmm2 | 148 |
| nsc stuck | 9 |
| dg mm | 5 |
| ta nm | 4 |
