Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
67560 Metal Face Seal, CR Seals
67560 Metal Face Seals are designed for application in demanding operational environments, particularly under conditions of relatively low speeds, as well as for conditions that require protection from sand, water, soil, mud, etc. These seals provide reliable protection against solid and liquid contaminants as well as leak-proof retention of lubricants.
MPN: 67560

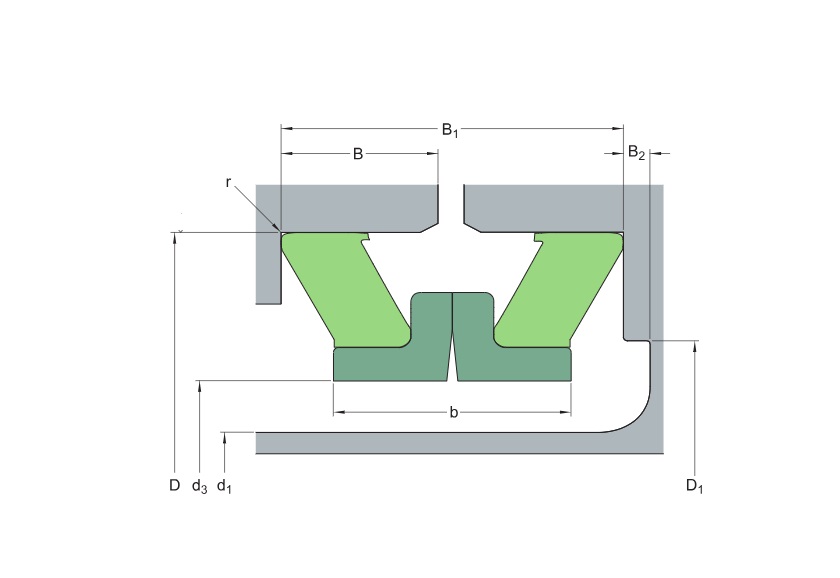

Specifications
| design | HDDF |
| lip material | Steel |
| shaft diameter max d1 in | 6.75 |
| housing bore diameter b in | 8.62 |
| tolerance operating width d in | ± 0.004 |
| operating width b1 in | 1.375 |
| housing bore depth b in | 0.656 |
| seal inside diameter d3 in | 6.92 |
| shoulder diameter d1 in | 7.75 |
| width of metal sealing rings max b in | 1.26 |
| radius max r in | 0.042 |
