Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
Climax 2C 218 A kW W/Keyway Two Piece Clampings Collar
We offer a 2C-218-A-kW Two-Piece Clamping Collar with 2 3/16 in Bore, 3 1/4 in OD, 3/4 Width, and 1/2 x 1/4 Keyway Size from Climax that fully engages the shaft without damage. They are installed in situations where significant disassembly would otherwise be necessary. These collars offer superior axial holding strength compared to set screws or one-piece clamping collars. Effective on both hard and soft shafts.
MPN: 2C-218-A-kW
Specifications
| series | 2C-kW |
| bore in | 2 3/16 |
| od in | 3 1/4 |
| width in | 3/4 |
| screw size | 5/16-24 x 1 |
| keyway size in | 1/2 x 1/4 |
| material | Aluminum, ASTM B211 |
| weight oz | 4.81 |
| finish | Plain |
Related Items

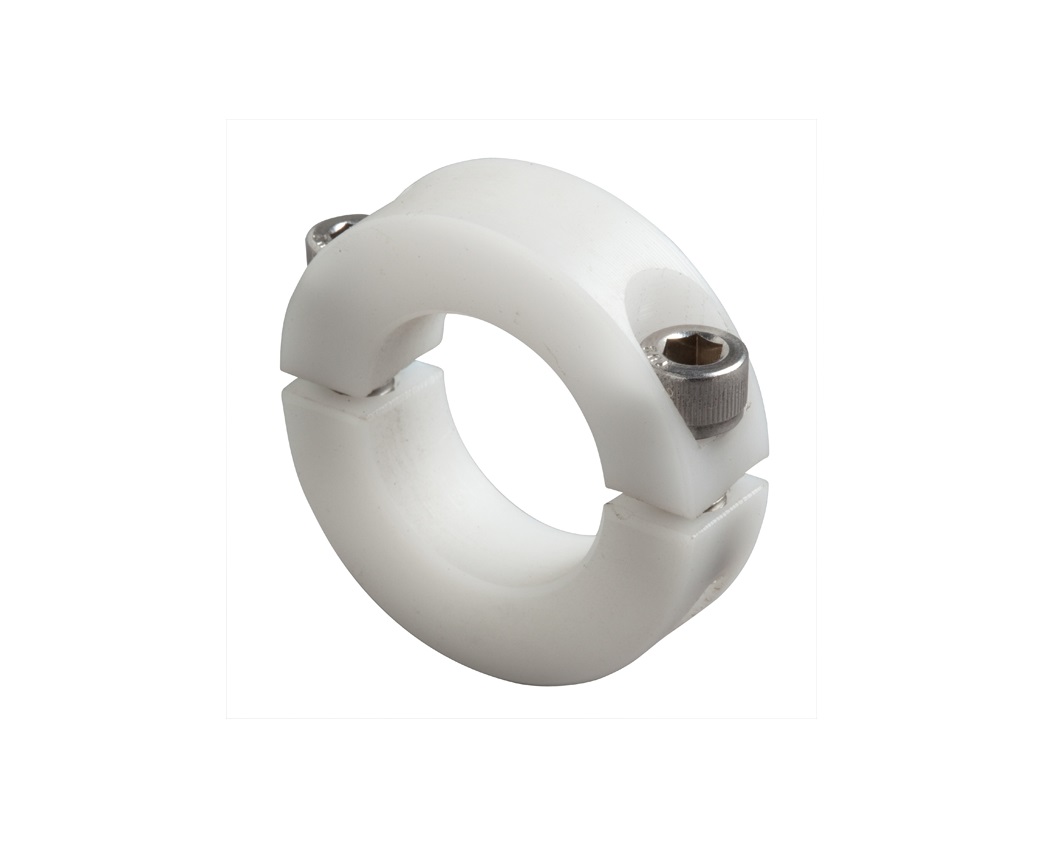

Climax N2C 025 Acetal Two Piece Clamping Collars
