Kubler Incremental Encoder 5804
Type 5804 incremental encoders feature a SinCos interface, making them well-suited for integration into drive engineering systems. Specifically crafted for applications where a standard SinCos interface suffices, these encoders are noted for their reliability, resilience, and ability to operate at high speeds. With a diameter of Ø 58 mm, they offer 5,000 pulses per revolution (ppr) incrementally. Additionally, they accommodate a maximum 10 mm shaft with a flat surface, enhancing their versatility in various industrial settings.
MPN: 5804
Specifications
| dimension | Ø 58 mm |
| protection level | IP64 |
| flange type | Ø 58.00 mm |
| max rotational speed | 12000/min |
| connection types | Axial cable, Radial cable, M23 connector axial, M23 connector radial |
| scanning | optical |
| resolution max | 5000 ppr incremental |
| power supply | 5 V DC, 10...30 V DC |
| interfaces | SinCos |
Related Items
Kubler Incremental Encoder Sendix 5834FS3
The 5834FS3 incremental encoders, part of the Sendix SIL family, are designed to meet the rigorous demands of safety-related applications, boasting compatibility with SIL3 standards per EN 61800-5-2 o...Read more
Kubler Incremental Encoder Sendix 5814FS3
The 5814FS3 incremental encoders are engineered for safety-critical applications, meeting SIL3 requirements per EN 61800-5-2 or PLe standards per EN ISO 13849-1. Tailored for safe drive technology, th...Read more

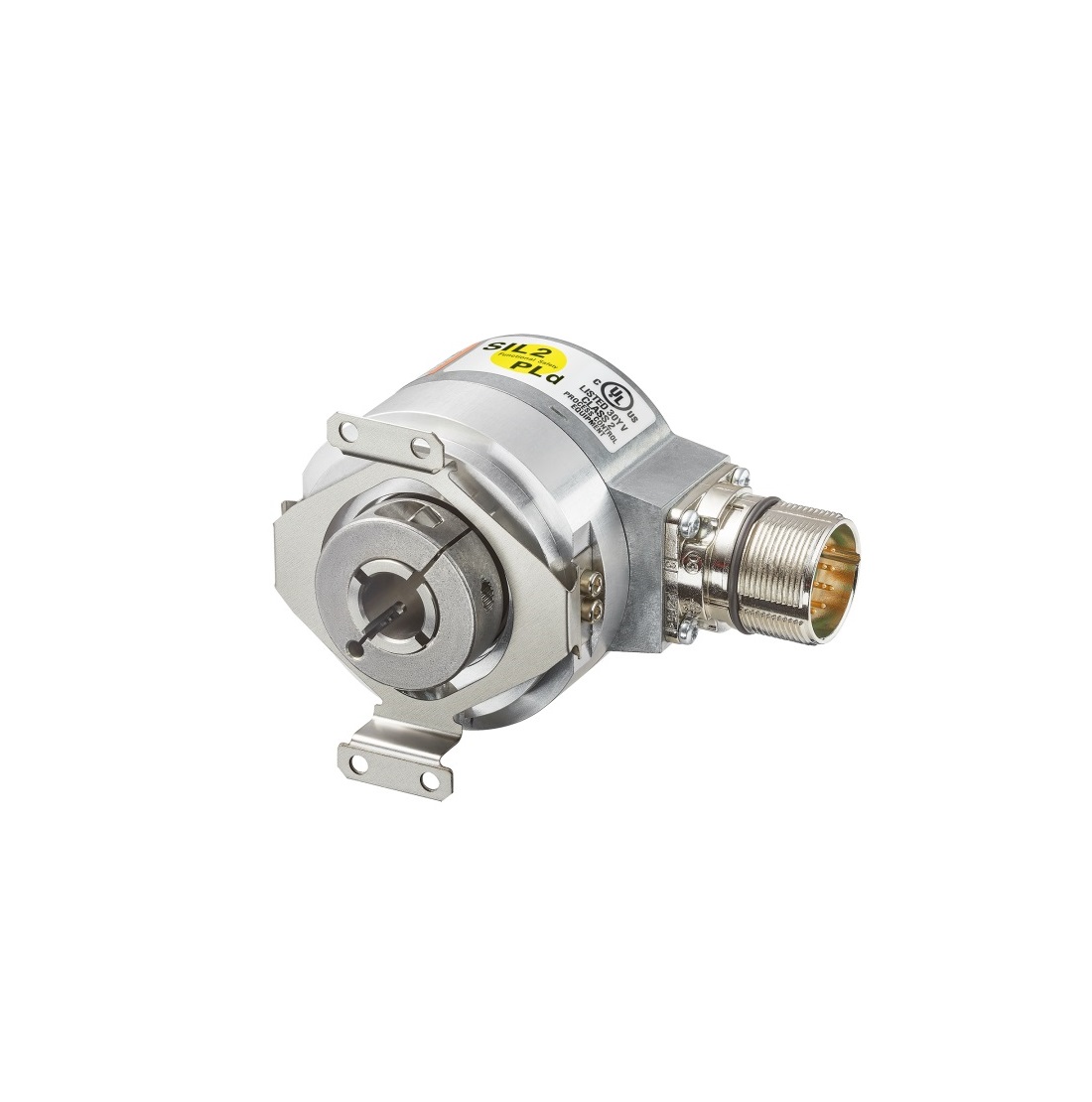

Kubler Incremental Encoder Sendix 5834FS2
The Sendix 5834FS2 incremental encoders are designed for safety-critical applications, meeting SIL2 standards as per EN 61800-5-2 or PLd requirements according to EN ISO 13849-1. Specifically tailored...Read more
Kubler Incremental Encoder Sendix 5814FS2
The Sendix 5814FS2 incremental encoders are well-suited for safety-critical applications, meeting SIL2 standards per EN 61800-5-2 or PLd requirements as per EN ISO 13849-1. Specifically crafted for in...Read more

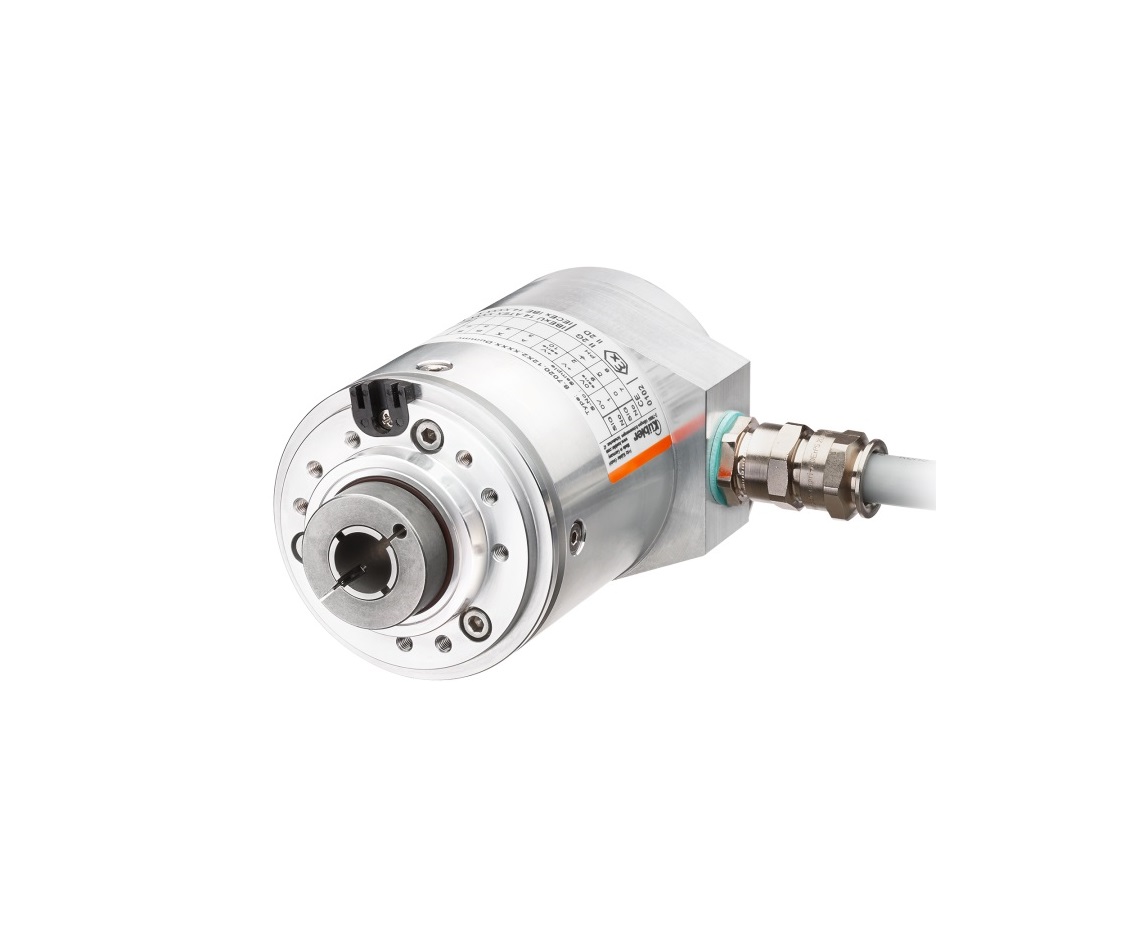

Kubler Incremental Encoder Sendix 7020
