Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
Lovejoy 8S FLNG 1 11/16 3/8X3/16KW Endurance Coupling
The Lovejoy S Flex Endurance Couplings 8S-FLNG-1-11/16-3/8X3/16KW feature high-strength cast iron S flanges, designed for a slip fit on standard shafts. These flanges are easy to install and come with two set screws positioned at 90°. The S Type coupling includes two flanges and a single sleeve.
MPN: 68514436144
$82.40 each
In stock i
Specifications
| bore size | 1 11/16 in |
| coupling size | 8S |
| keyway size w x d | 3/8 x 3/16 in |

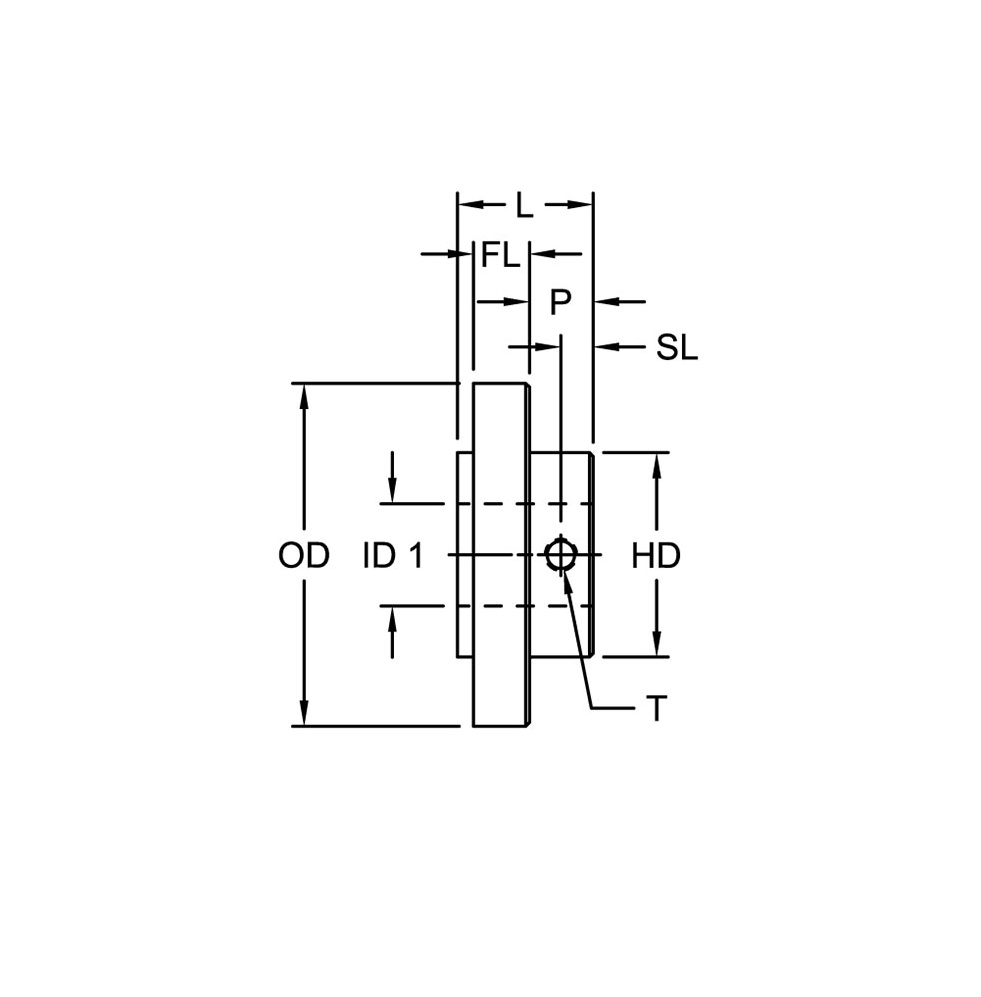

| outside diameter | 5.450 in |
| dimension hd | 3.250 in |
| dimension l | 2.100 in |
| bore type | Finished Bore |
| material | Cast Iron |
| max speed | 4500 rpm |
| nominal torque with epdm sleeve | 1135 in·lb |
