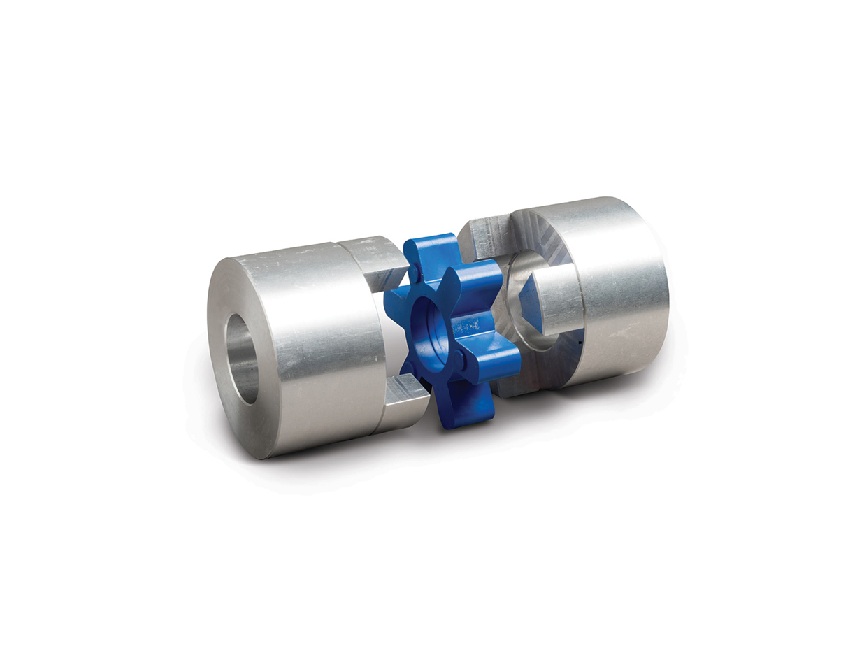

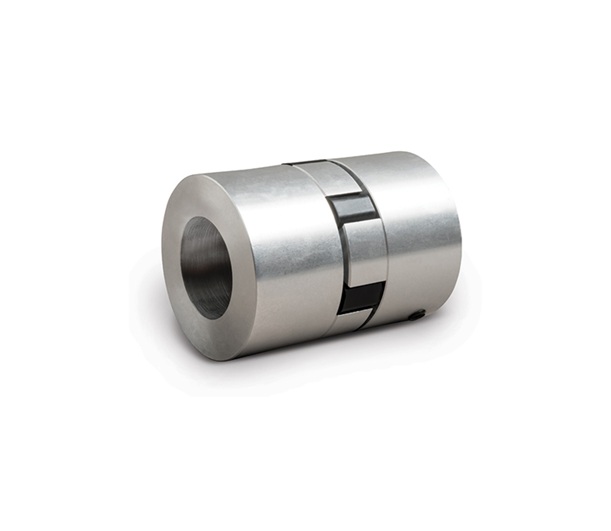

Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.

TB Woods AL05012NK Jaw Coupling Hub

The TB Wood’s AL05012NK Jaw Coupling Hub is a precision‑engineered component from the L‑Jaw hub family, designed for reliable performance in power transmission applications. Built from lightweight yet durable aluminum, this hub features a 1/2-inch finish bore with no keyway, a straight jaw type, and a 1/4-inch setscrew for secure mounting. With an outside diameter of 1.08 inches, an overall length of 1.72 inches, and a length‑through‑bore of 0.63 inches, it supports speeds up to 18,000 RPM, making it a versatile choice for high‑speed, high‑efficiency coupling assemblies.

MPN:AL05012NK


Availability:

In stock

Typically ships in :

1 day

Specifications


bore size

1/2 in

coupling size

AL050

max rpm

18000

keyway size

No Keyway

setscrew length

1/4 in

outside diameter od

1.08 in

parallel misalignment max

3/200 in

setscrew size

1/4-20NC

overall length oal

1.72 in

length through bore ltb

0.63 in

coupling section

Hub

shaft type

Round

shaft locking type

Set Screw

hub material

Aluminum

jaw type

Straight Jaw

Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.

TB Woods AL05012NK Jaw Coupling Hub

MPN: AL05012NK

In stock

Quantity

Request a quote

Product Description

The TB Wood’s AL05012NK Jaw Coupling Hub is a precision‑engineered component from the L‑Jaw hub family, designed for reliable performance in power transmission applications. Built from lightweight yet...
