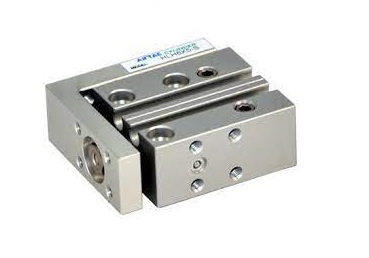

Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
HLH Series Slide Table Cylinder, Doube Action, 10mm Bore Size, M5x0.8 Port Size, 7mm Guide rail width.
AirTAC HLH Series Slide Table Cylinder, Doube Action, 10mm Bore Size, M5x0.8 Port Size, 7mm Guide rail width is a miniature linear roller ball bearing integrated wise cylinder. The Cylinder can be mounted from four directions, and the piping is possible from three directions. It is designed with superior straightness and non-rotating accuracy for precision assembly applications. Check the pdf file below to select the HLH Series Slide Table Cylinder that best suits your application.
MPN: HLH10
Specifications
| cushion type | Bumper |
| port size | M5 x 0.8 |
| maximum operating pressure psi | 100 |
| maximum operating pressure mpa | 0.7 |
| proof pressure mpa | 1.2 |
| proof pressure psi | 175 |
| speed range mms | 50~500 |
| temperature c | -20~70 |
| fluid | 40 μm filtered Air |
| acting type | Double Acting |
| guide rail mm | 7 |
| model | HLH Series |
| bore size | 0.39" |
