Masterdrive SH1.1/4 QD Bushing
SH Size, 1.1/4 Bore, Quick Detachable, reverse mountable Bushing with Ductile Iron material, without a set screw over the keyway.
MPN: SH1.1/4
$13.28 each
Typically ships in: 2 days
Specifications
| size | SH |
| bore in | 0.275" |
| weight lbs | 0.8 |
| key seat | 1/4 x 1/8 |

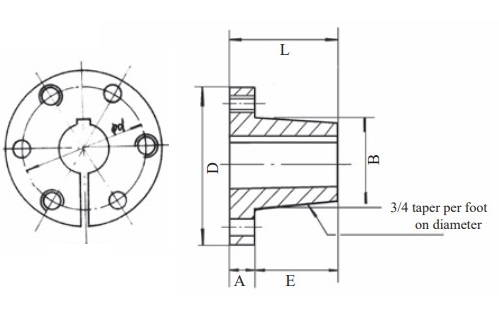

| a | 7/16 |
| b | 1.871 |
| d | 2 11/16 |
| e | 7/8 |
| l | 1 5/16 |
| bolt hole center in | 2.25" |
| cap screws required | (3) 1/4 x 1 3/8 |
