Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
Three Part Shrink Disc RfN 4051 350x545 310 GT
The Ringfeder RfN 4051 is a three-part shrink disc and serves to transfer low to moderate torque. The narrow pressure rings require only a very small space. The transferrable torque can be set in a targeted manner for the corresponding application by changing the screw tightening torque. You can download the product's 3D model below
MPN: RfN-4051-350x545-310---GT

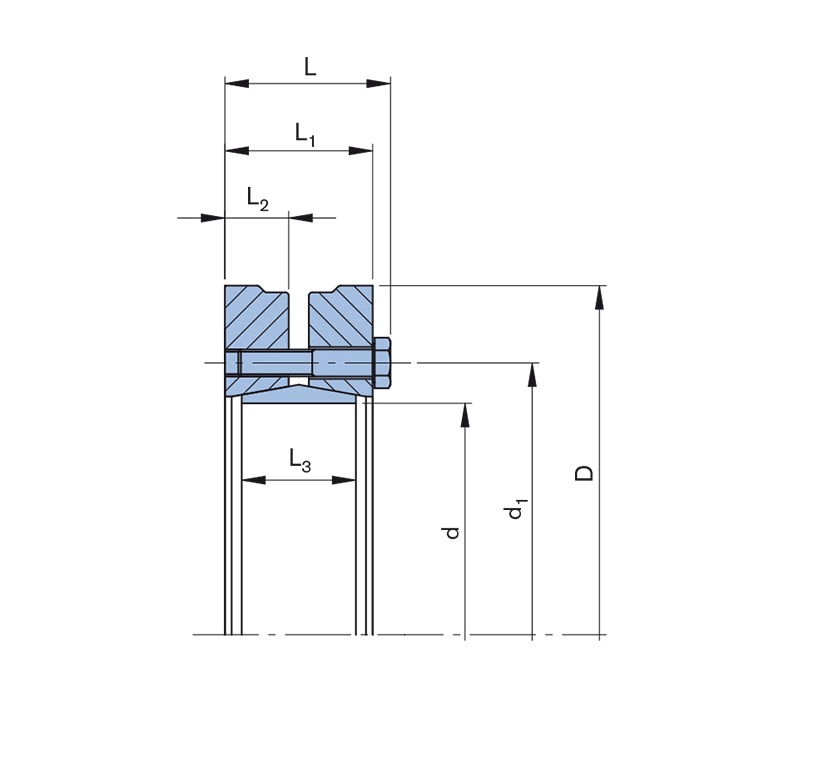

Specifications
| d mm | 545 |
| dw mm | 310 |
| d1 mm | 413 |
| l mm | 135 |
| l1 mm | 122 |
| l3 mm | 100 |
| t nm | 400000 |
| p nmm2 | 230 |
| nsc | 16 |
| dg mm | 20 |
| ta nm | 490 |
| type | GT (Split type) |
