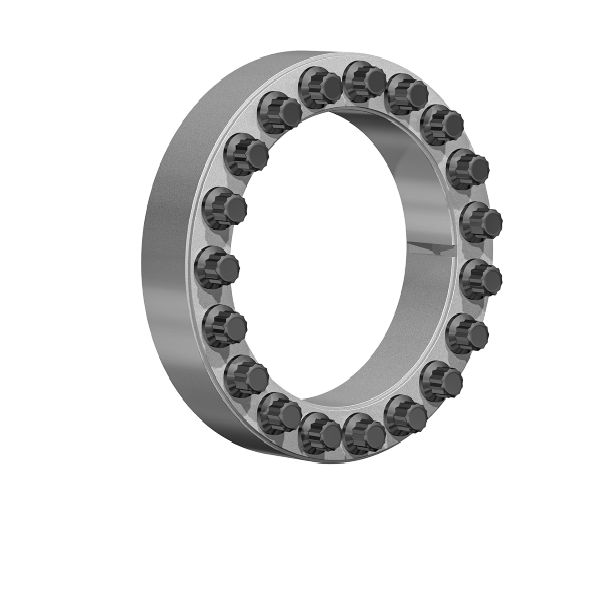

Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
Ringfeder 7012 1000x1110 Locking Assembly
Ringfeder RFN7012, 1000d, 1110D self-centering lock assemblies feature double-tapered thrust rings with self-releasing tapers suitable for the applications with limited space. They have large transmittable forces and moments, bending moment and radial loads, easy installation, and low risks to contamination. Typical applications include pulleys, levers, chain wheels etc. You can download the product's 3D model below.
MPN: RfN 7012-1000x1110
Specifications
| inner diameter inch | 39.37 |
| outer diameter inch | 43.701 |
| overall length | 5.118 |
| overall length without screws | 4.016 |
| width of ring | 3.78 |
| transmissible torque at given ta | 1734782 |
| pw | 18841 |
| pn | 16957 |
| ta | 885 |
| dn min bei 400 | 52.205 |
| max. transmissible torque ft lbs | 2581099 |
| surface pressure on shaft at given ta | 18841 |
| surface pressure on hub at given ta | 16957 |
| max. tightened torque of the clamping screws | 885 |
| series | RfN7012 |
| d mm | 1110 |
| l mm | 130 |
| l1 mm | 102 |
| l3 mm | 96 |
| t nm | 2352018 |
| pw nmm2 | 130 |
| pn nmm2 | 117 |
| dg mm | 24 |
| ta nm | 1200 |
| dn min bei rp02 400 nmm2 mm | 1326 |
| tmax nm | 3499454 |
| video |
