Kubler Incremental Encoder Sendix H120
Developed specifically for heavy-duty applications, the Sendix Heavy Duty H120 encoders are engineered to meet the demands of large motors and generators. Featuring the innovative HD-Safety-Lock™ design, these encoders boast exceptional robustness and accuracy. With a sturdy bearing construction and integrated bearing isolation, they ensure reliable performance even in harsh environments. The dual protection of the shaft, wide temperature tolerance, and high protection level further enhance their durability. Offering a very large hollow shaft of up to 28 mm, along with a variety of mounting solutions and connection options, they provide utmost flexibility during installation. With their resistance, simplicity of installation, and a dimension of Ø 100 mm, these encoders are ideal for heavy-duty applications. They offer 5,000 ppr incremental resolution, with options for hollow shafts, blind holes, insert shafts, and tapered shafts, catering to diverse industrial needs.
MPN: Sendix-H120
Specifications
| dimension | Ø 100 mm |
| protection level | IP67 |
| flange type | Ø 100 mm |
| max rotational speed | 6000/min |
| connection types | Radial cable, M23 connector radial, M12 connector radial, Terminal box |
| scanning | optical |
| resolution max | 5000 ppr incremental |
| power supply | 5 V DC, 10...30 V DC |
| interfaces | Gegentakt, TTL / RS422 |
Related Items
Kubler Incremental Encoder Sendix 5000
The Sendix 5000 incremental encoders stand as the standard choice for automation, renowned for their exceptional resistance to vibrations and installation errors owing to their robust bearing construc...Read more
Kubler Incremental Encoder Sendix 5020
The Sendix 5020 incremental encoders are distinguished by their exceptional resistance to vibrations and installation errors, thanks to their robust bearing construction featuring the Safety Lock™ d...Read more

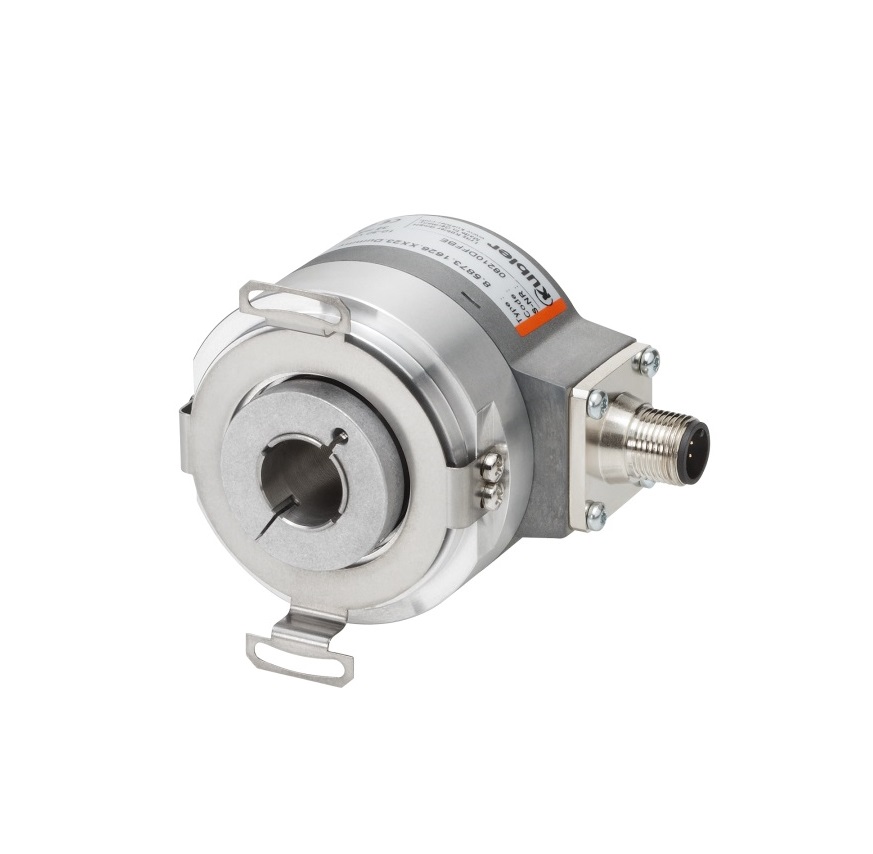

Kubler Incremental Encoder Sendix 5834
The Sendix 5834 incremental encoders featuring the SinCos interface offer exceptional interpolatability. Specifically designed for use in drive technology, these encoders are characterized by their hi...Read more

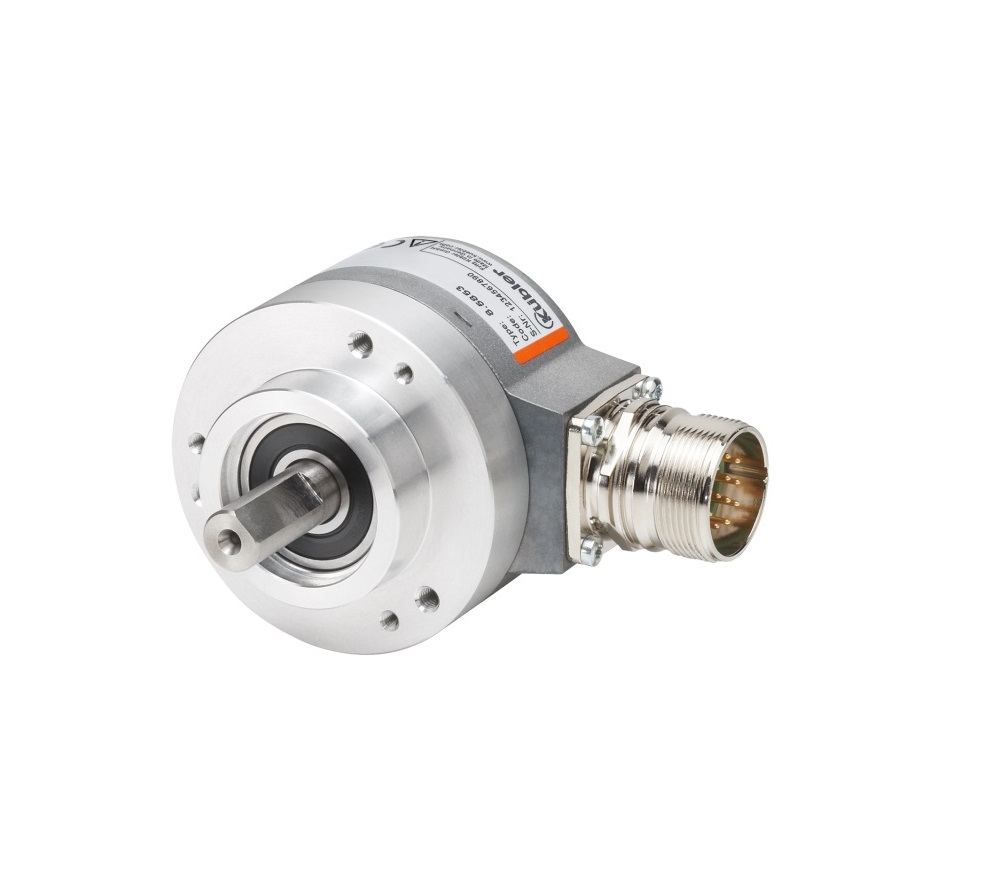

Kubler Incremental Encoder Sendix 5814
The Sendix 5814 incremental encoders, equipped with the SinCos interface, excel in various drive applications. Their exceptional signal quality makes them ideal for precise interpolation, ensuring acc...Read more

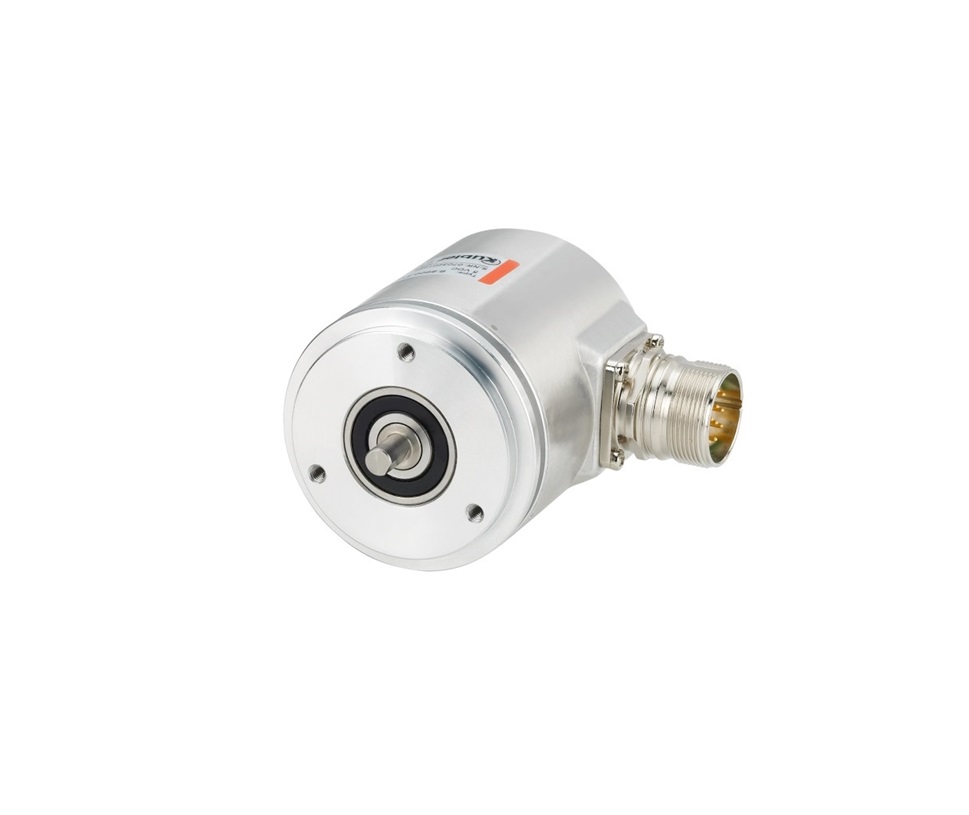

Kubler Incremental Encoder 5805
With resolutions reaching a maximum of 36,000 pulses per revolution, type 5805 incremental encoders are tailored for applications demanding utmost precision. Their resilience, reliability, and robust ...Read more
