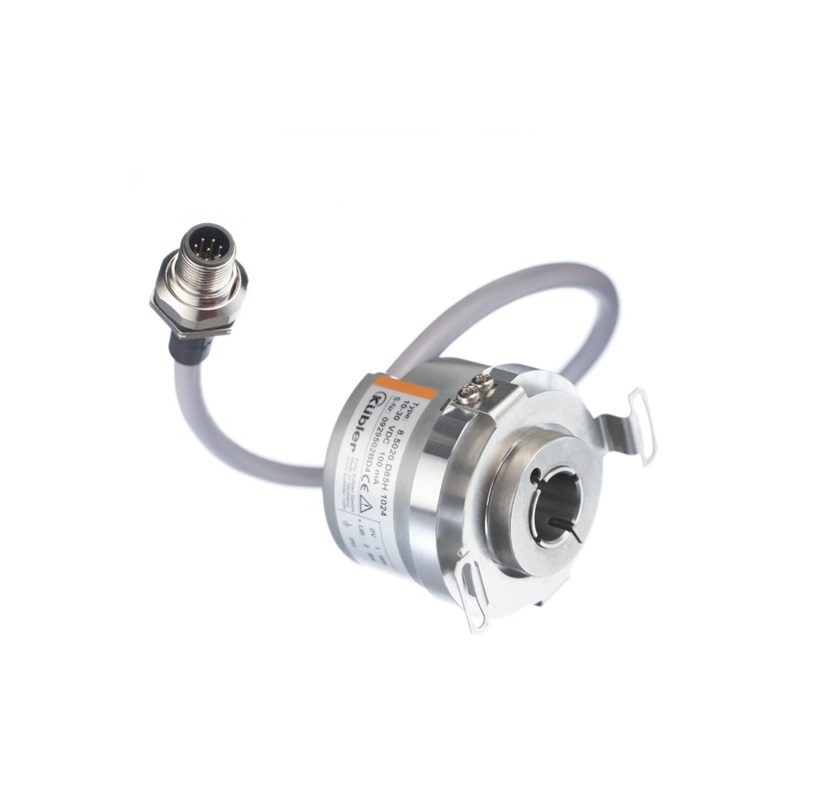

Kubler Incremental Encoder Sendix 5020
The Sendix 5020 incremental encoders are distinguished by their exceptional resistance to vibrations and installation errors, thanks to their robust bearing construction featuring the Safety Lock™ design. With a stable die-cast housing, high IP67 protection rating, and an extensive temperature range spanning from -40 °C to +85 °C, these encoders are suitable for universal use across various environments. This encoder family undergoes continuous technical refinement, now offering an unparalleled range of ordering options, ensuring adaptability to diverse industrial needs. With dimensions of Ø 50 mm and 5,000 ppr incremental resolution, these encoders boast a remarkable resilience. However, please note that the 24one delivery promise is currently unavailable. They feature a maximum 15 mm hollow shaft and a maximum 5/8" hollow shaft, both accommodating through shafts for added versatility.
MPN: Sendix-5020
Specifications
| dimension | Ø 50 mm |
| protection level | IP65, IP66, IP67 |
| flange type | Ø 50.80 mm, Ø 57.20 mm, Ø 63.00 mm, Ø 65.00 mm |
| max rotational speed | 12000/min |
| connection types | Axial cable, Radial cable, Tangential cable, M23 connector radial, M12 connector radial, MIL connector |
| scanning | optical |
| resolution max | 5000 ppr incremental |
| power supply | 5 V DC, 5...30 V DC, 10...30 V DC |
| interfaces | Gegentakt, TTL / RS422, Open Collector |
