Kubler Incremental Encoder 5823
Belonging to the high temperature series, the incremental encoders type 5823 are designed for operation in environments with temperatures reaching up to 110°C. Combining exceptional heat resistance with high-speed capabilities, these encoders offer an ideal solution for applications requiring reliable performance in high-temperature settings. Featuring a diameter of Ø 58 mm and providing 5,000 ppr incremental resolution, they accommodate maximum 12 mm hollow shafts, ensuring versatility and adaptability to various industrial setups.
MPN: 5823
Specifications
| dimension | Ø 58 mm |
| protection level | IP40, IP66 |
| flange type | Ø 58.00 mm, Ø 65.00 mm |
| max rotational speed | 12000/min |
| connection types | Radial cable, M23 connector radial |
| scanning | optical |
| resolution max | 5000 ppr incremental |
| power supply | 5 V DC, 10...30 V DC |
| interfaces | Gegentakt, TTL / RS422 |
Related Items
Kubler Incremental Encoder 5803
Designed for operation in high-temperature environments, the incremental encoders from the 5803 high temperature series are capable of withstanding temperatures up to a maximum of 110°C. Combining im...Read more
Kubler Incremental Encoder 5824
Type 5824 incremental encoders provide a SinCos interface, making them well-suited for drive engineering applications. Specifically designed for scenarios where a standard SinCos interface suffices, t...Read more
Kubler Incremental Encoder 5804
Type 5804 incremental encoders feature a SinCos interface, making them well-suited for integration into drive engineering systems. Specifically crafted for applications where a standard SinCos interfa...Read more

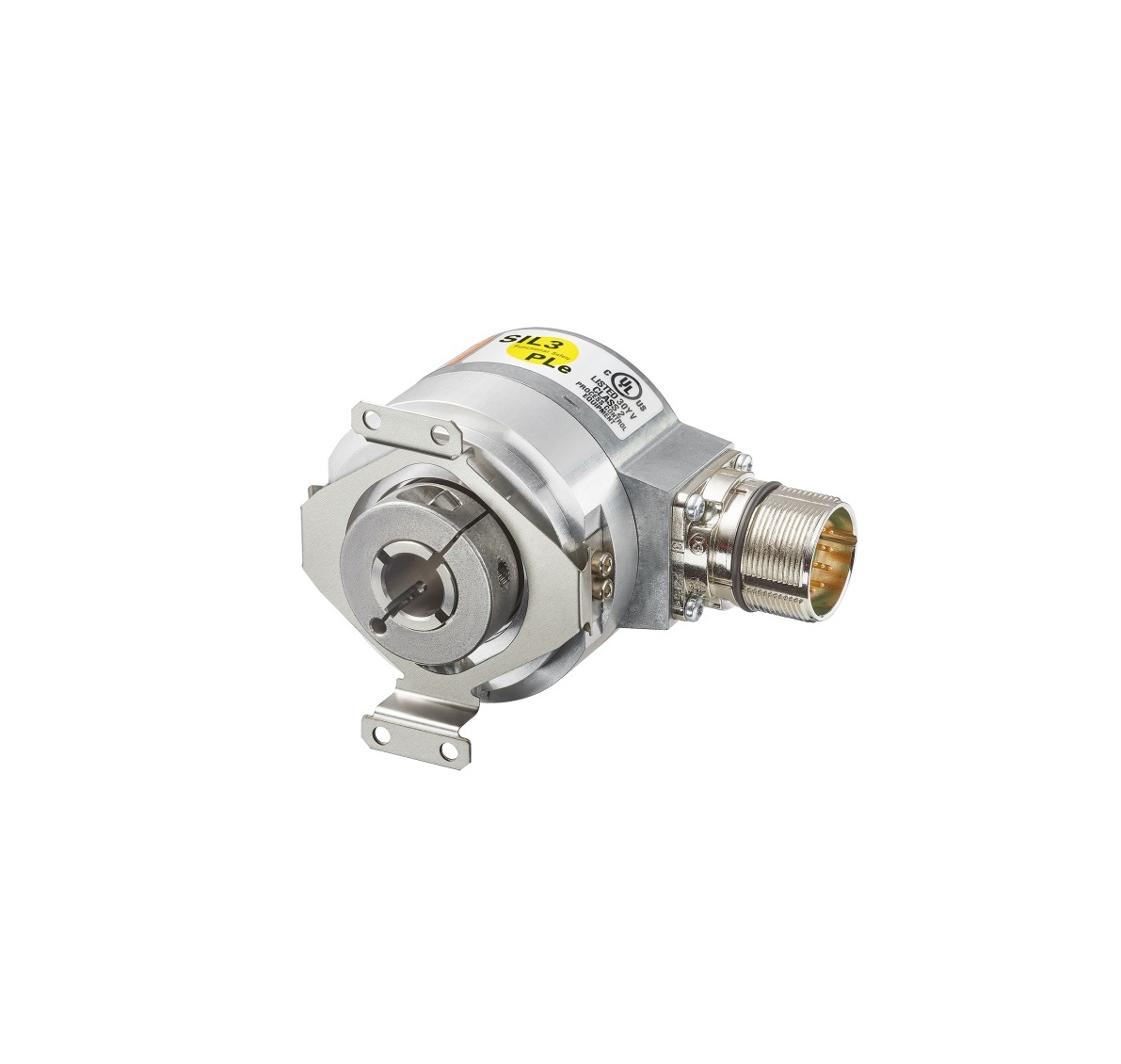

Kubler Incremental Encoder Sendix 5834FS3
The 5834FS3 incremental encoders, part of the Sendix SIL family, are designed to meet the rigorous demands of safety-related applications, boasting compatibility with SIL3 standards per EN 61800-5-2 o...Read more

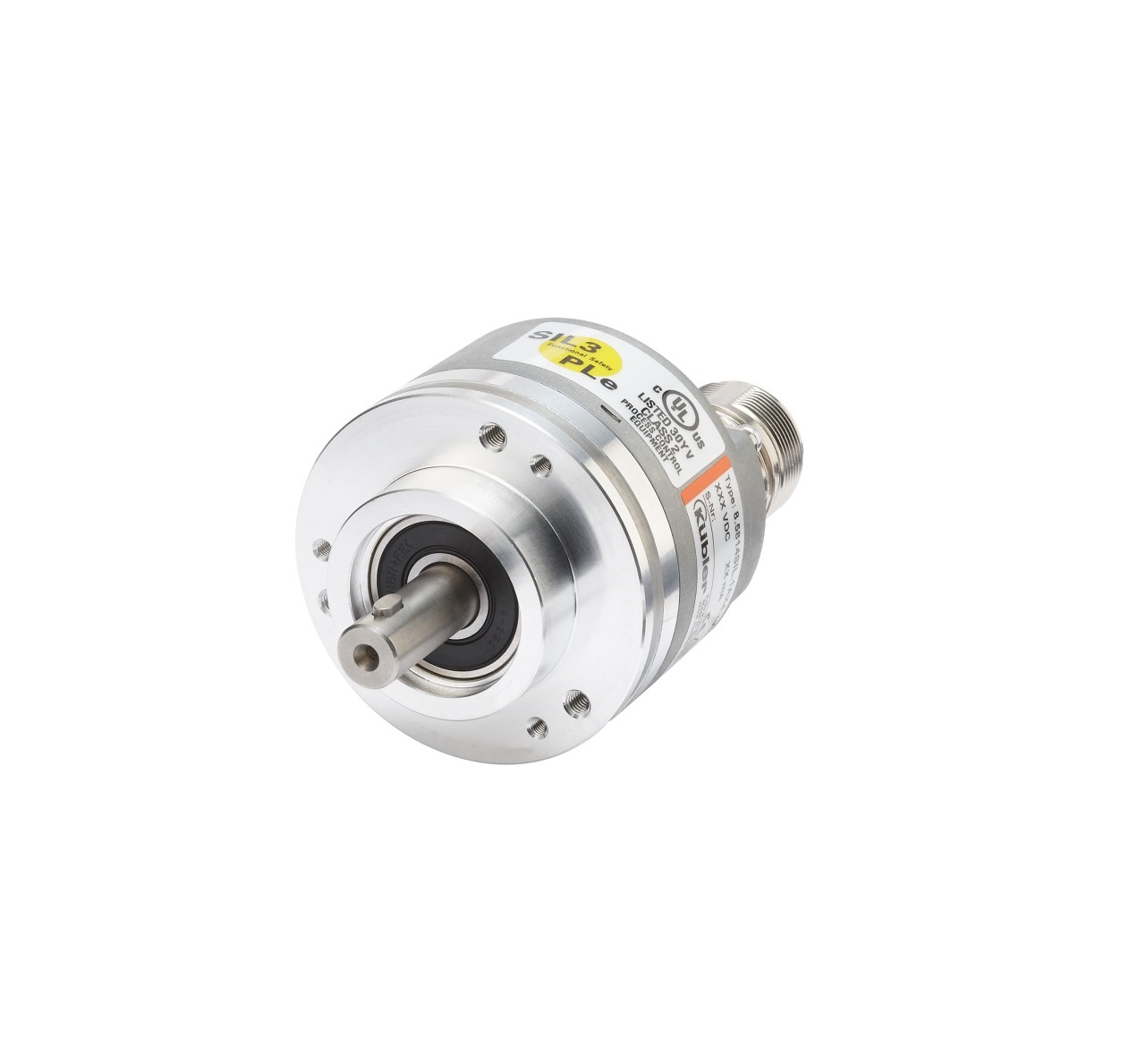

Kubler Incremental Encoder Sendix 5814FS3
