Kubler Incremental Encoder type 2430
Type 2430 Magnetic miniature encoders are an optimal choice for installations with limited space constraints. These encoders boast exceptional durability thanks to their non-contact magnetic scanning technology, ensuring reliability even in demanding conditions, offering resolutions of up to 256 pulses per revolution. With a compact outer diameter of just 24 mm, they are perfectly suited for applications where space is at a premium. Additionally, their robust bearing structure further enhances their suitability for small devices. With a maximum shaft diameter of 6 mm for round shafts and 5 mm for shafts with a flat surface, they provide versatility in various mounting configurations.
MPN: 2430
Specifications
| dimension | Ø 24 mm |
| protection level | IP50, IP64, IP65 |
| flange type | Ø 24.00 mm, Ø 28.00 mm, Ø 30.00 mm |
| max rotational speed | 12000/min |
| connection types | Axial cable, Radial cable |
| scanning | magnetic |
| resolution max | 256 ppr incremental |
| power supply | 5 V DC |
| interfaces | TTL / RS422 |
Related Items
Kubler Incremental Encoder type 3620
Type 3620 compact incremental encoders, equipped with optical sensor technology, offer a versatile solution with resolutions reaching up to 2500 pulses per revolution. Specifically designed for ease o...Read more
Kubler Incremental Encoder type 3610
3610 compact incremental encoders, featuring optical sensor technology, offer a resolution of up to 2500 pulses per revolution. Specifically designed for tight installation spaces, they come in a vers...Read more
Kubler Incremental Encoder Sendix Base KIS40
The economical sensor solution, the Sendix Base KIS40 incremental encoders employing optical sensor technology, are specifically crafted for optimal cost-efficiency. With a resolution reaching up to 2...Read more

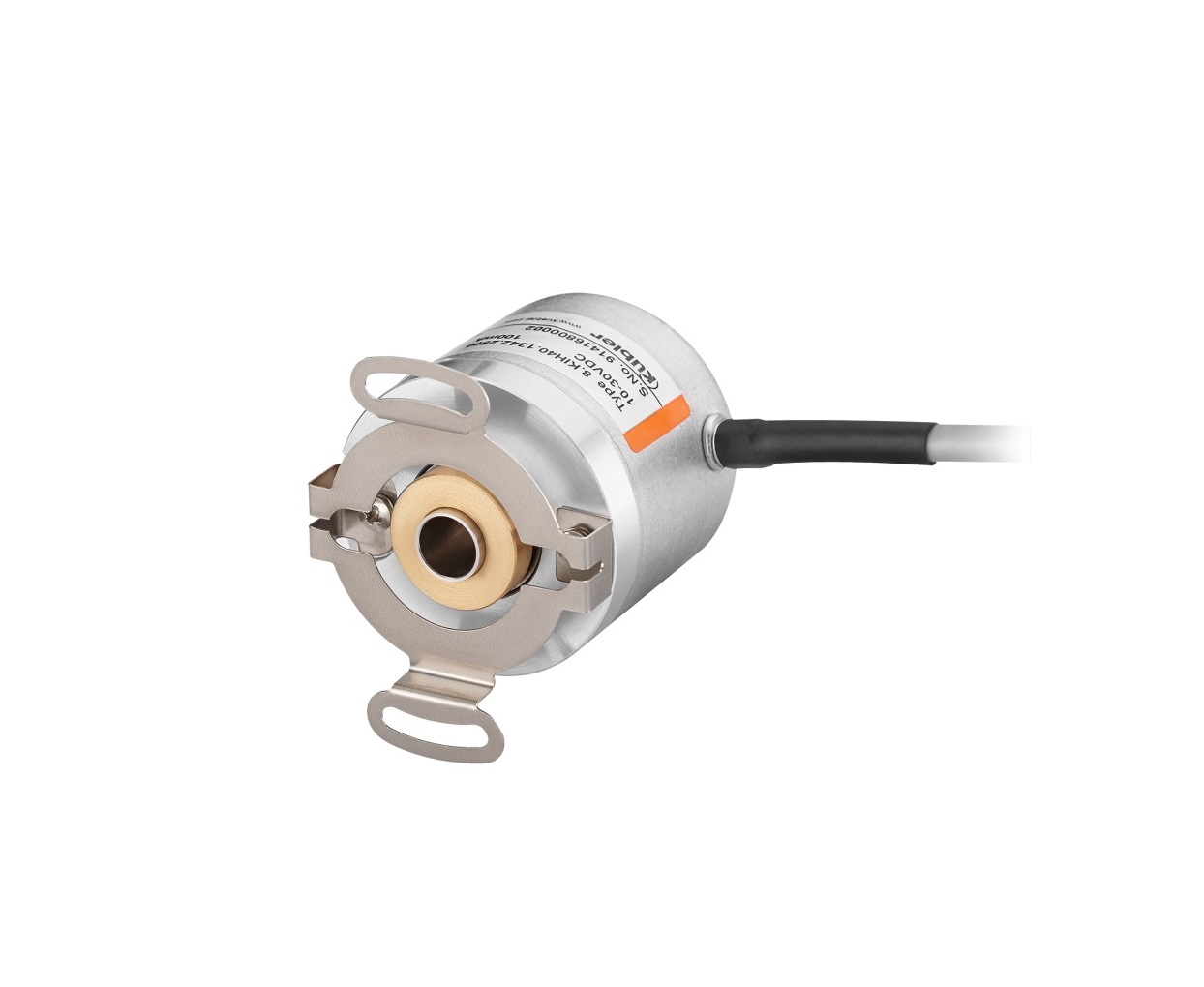

Kubler Incremental Encoder Sendix Base KIH40
The Sendix Base KIH40 incremental encoders integrate optical sensor technology to offer exceptional cost-effectiveness. With a maximum resolution of 2560 pulses per revolution, they are tailored for a...Read more

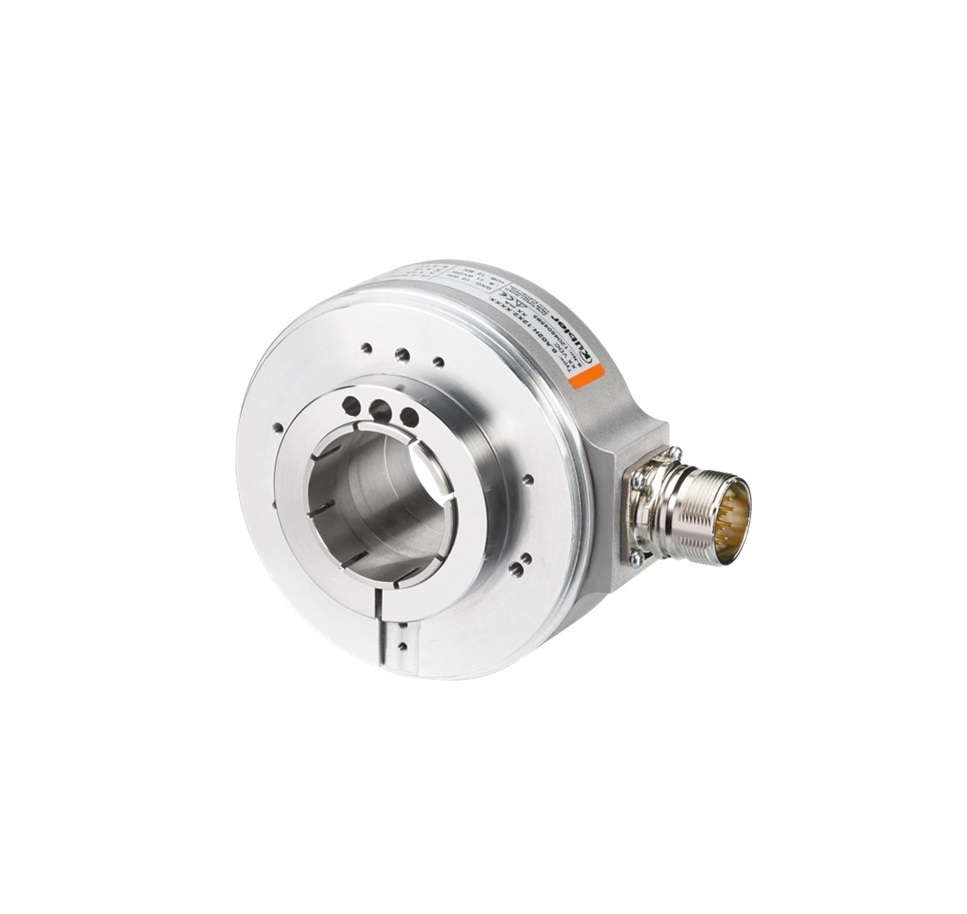

Kubler Incremental Encoder A02H
Designed for durability, the Heavy Duty incremental encoder, type A02H, stands out with its exceptional robustness and compact build, featuring a hollow shaft of up to 42 mm. Its sturdy construction e...Read more
