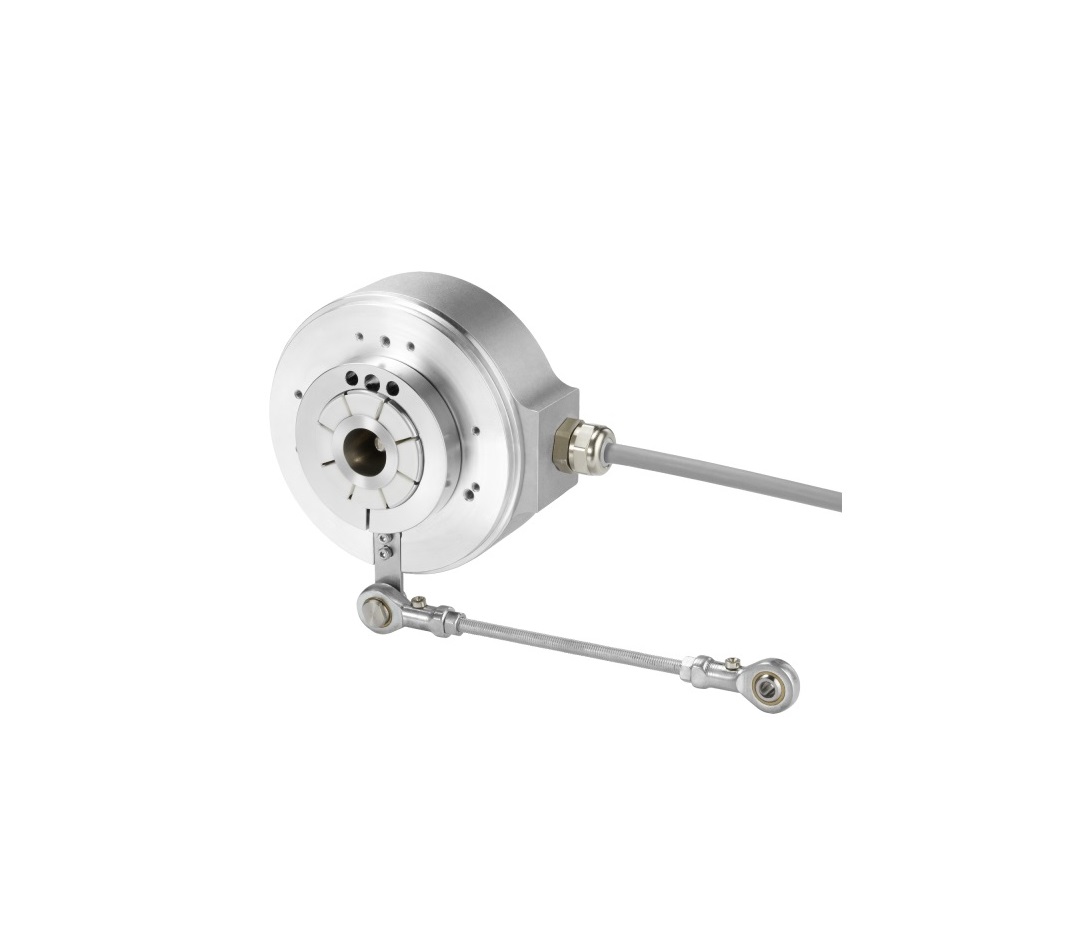

Kubler Incremental Encoder A02H
Designed for durability, the Heavy Duty incremental encoder, type A02H, stands out with its exceptional robustness and compact build, featuring a hollow shaft of up to 42 mm. Its sturdy construction ensures resilience even in the harshest of environments, making it an ideal choice for demanding applications. With a dimension of Ø 100 mm, this encoder offers a compact solution without compromising on performance, boasting a resolution of 5000 pulses per revolution. Additionally, it accommodates hollow shaft sizes of up to 42 mm and 1 1/4" through holes, further enhancing its versatility and suitability for various industrial settings.
MPN: A02H
Specifications
| dimension | Ø 100 mm |
| protection level | IP65 |
| flange type | Ø 100.00 mm, Ø 115.00 mm |
| max rotational speed | 6000/min |
| connection types | Radial cable, M23 connector radial, M12 connector radial |
| scanning | optical |
| resolution max | 5000 ppr incremental |
| power supply | 5 V DC, 5...30 V DC, 10...30 V DC |
| interfaces | Gegentakt, TTL / RS422, SinCos |
