Please Note: Photo may not represent actual item, please refer to title and product specifications for all details.
Kubler Incremental Encoder type 3610
3610 compact incremental encoders, featuring optical sensor technology, offer a resolution of up to 2500 pulses per revolution. Specifically designed for tight installation spaces, they come in a versatile range, with a dimension of Ø36 mm. Versions with a hollow shaft accommodate diameters up to 8 mm, while shaft options include a maximum of 5 mm round, 6 mm with a flat surface, or 1/4" with a flat surface, ensuring adaptability to various setups within confined areas.
MPN: 3610
Specifications
| dimension | Ø 36 mm |
| protection level | IP50, IP64, IP65 |
| flange type | Ø 36.00 mm, Ø 36.50 mm |
| max rotational speed | 12000/min |
| connection types | Axial cable, Radial cable, M12 connector axial, M12 connector radial |
| scanning | optical |
| resolution max | 2500 ppr incremental |
| power supply | 5 V DC, 5...18 V DC, 8...30 V DC |
| interfaces | Gegentakt, TTL / RS422 |
Related Items
Kubler Incremental Encoder Sendix Base KIS40
The economical sensor solution, the Sendix Base KIS40 incremental encoders employing optical sensor technology, are specifically crafted for optimal cost-efficiency. With a resolution reaching up to 2...Read more
Kubler Incremental Encoder Sendix Base KIH40
The Sendix Base KIH40 incremental encoders integrate optical sensor technology to offer exceptional cost-effectiveness. With a maximum resolution of 2560 pulses per revolution, they are tailored for a...Read more
Kubler Incremental Encoder A02H
Designed for durability, the Heavy Duty incremental encoder, type A02H, stands out with its exceptional robustness and compact build, featuring a hollow shaft of up to 42 mm. Its sturdy construction e...Read more

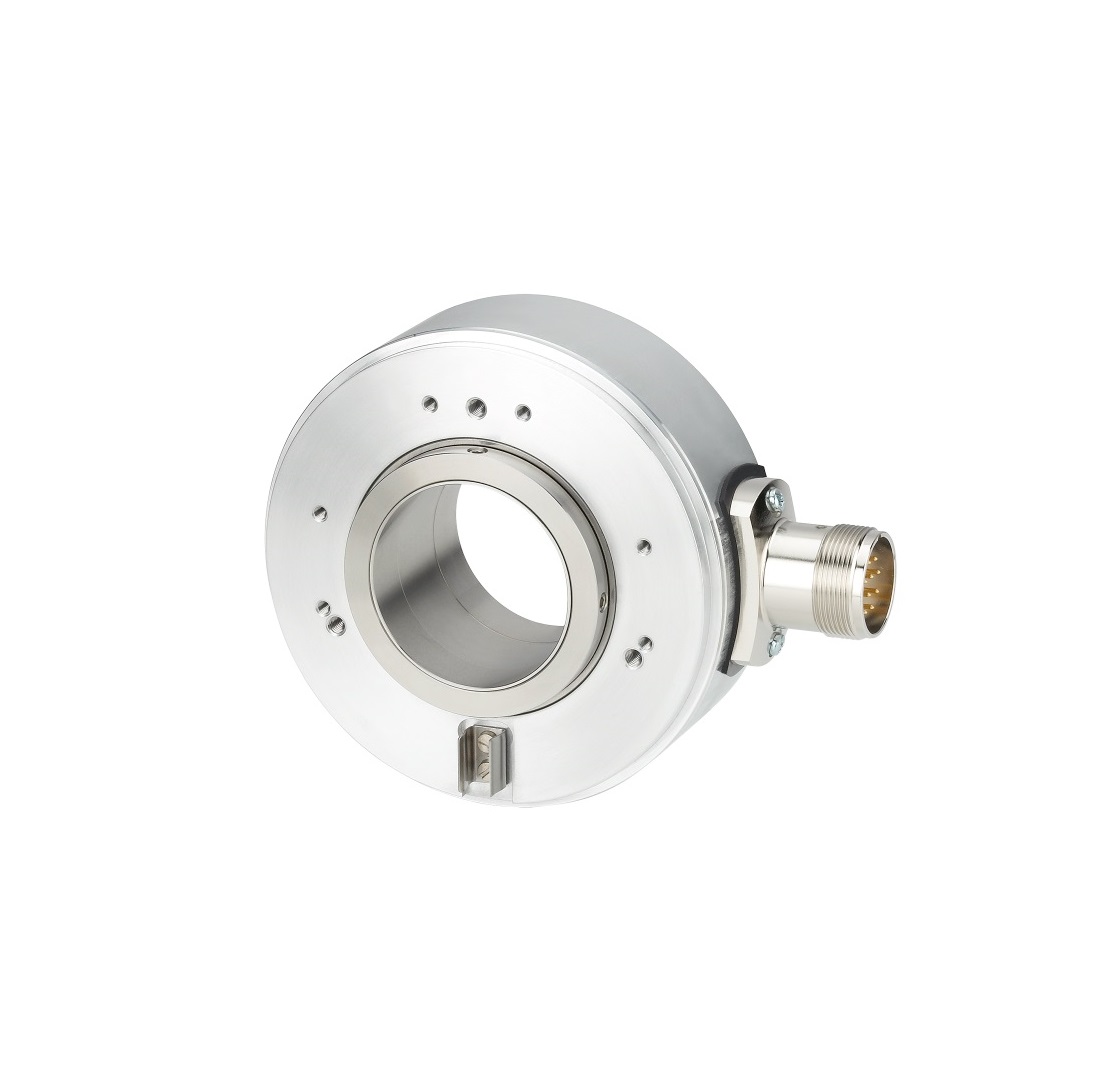

Kubler Incremental Encoder A020
The A020 incremental encoder, employing optical sensor technology, offers a through hollow shaft capability of up to 42 mm in diameter. With its slim 43 mm installation depth, it is well-suited for mo...Read more

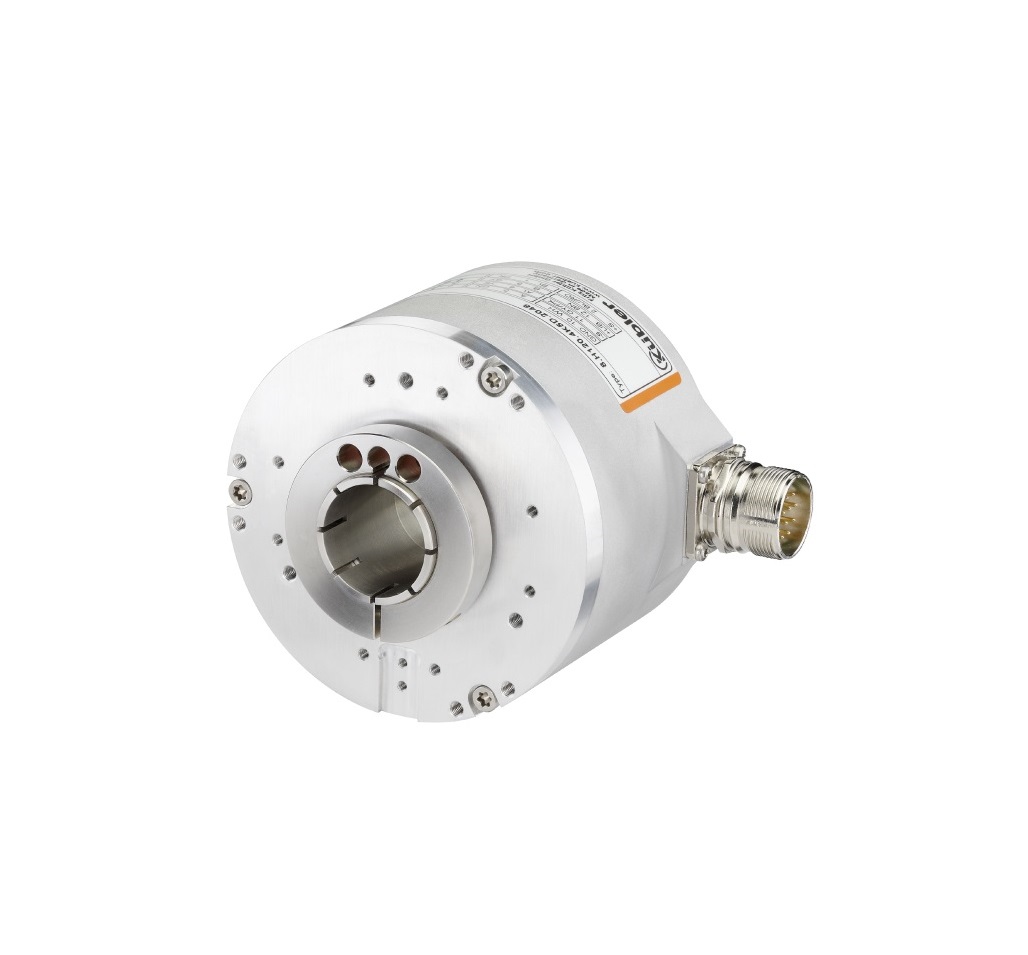

Kubler Incremental Encoder Sendix H120
