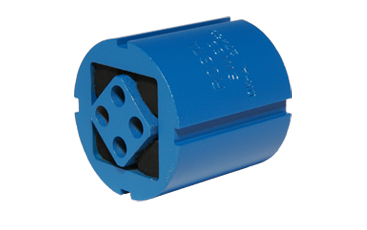

Rosta Rubber Suspension Units DK-A
Round housing and inner square section of Rubber Suspension Units DK-A made from light alloy profiles, inner square section with four ''throughbores'', the arms can be bolted on and also the bores can be tapped in case of necessity.
Both ways provide an excellent connection without play, which is necessary in order to transmit alternating motion by passing the neutral position in either direction. All metal parts are paint-finished.
MPN: 01 071 002
Specifications
| Nm ± 25° | 5.7 |
| øA | 5 |
| Type | DK-A 15x 25 |
| Nm ± 20° | 4.0 |
| B | 10 |
| øD | 36 |
| E | 5 |
| F | 2.5 |
| S | 15 |
| L | 25 |
| L1 | 30 |
| Nm ± 10° | 1.6 |
| Weight (kg) | 0.05 |
| Nm ± 15° | 2.6 |
| Nm ± 30° | 8.2 |
Related Items

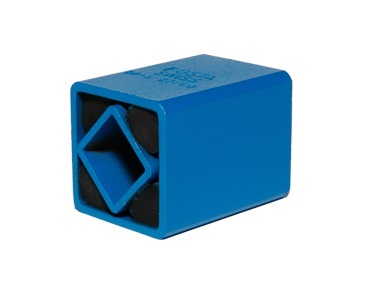

Rosta Rubber Suspension Units DR-S
The housing of DR-S type of Rubber Suspension Units are made of steel, inner square section is made of steel tube for mounting ''plug-in'' lever arms on one or both sides. The inser...Read more
Rosta Rubber Suspension Units DK-A
Round housing and inner square section of Rubber Suspension Units DK-A made from light alloy profiles, inner square section with four ''throughbores'', the arms can be bolted o...Read more

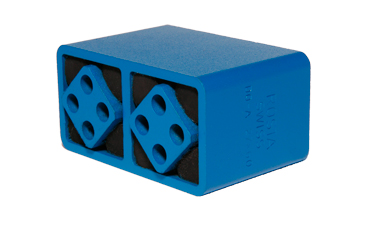

Rosta Rubber Suspension Units DO-A
The housing up to 45 size of Rubber Suspension Units DO-A are made from light alloy profile, size 50 is made out of spheroidal graphite cast iron, inner square section - light alloy profile with fo...Read more

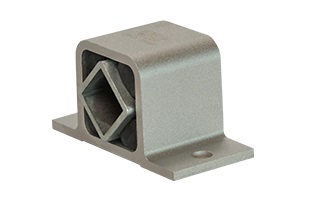

Rosta Rubber Suspension Units DW-S
